Documentation for National Information Exchange Model (NEIM)
Definition Type: ComplexType
Name: PersonAugmentationType
Namespace: http://niem.gov/niem/domains/screening/2.0
Type: s:AugmentationType
Containing Schema: screening.xsd
Abstract
Documentation:
A data type for additional information about a person.

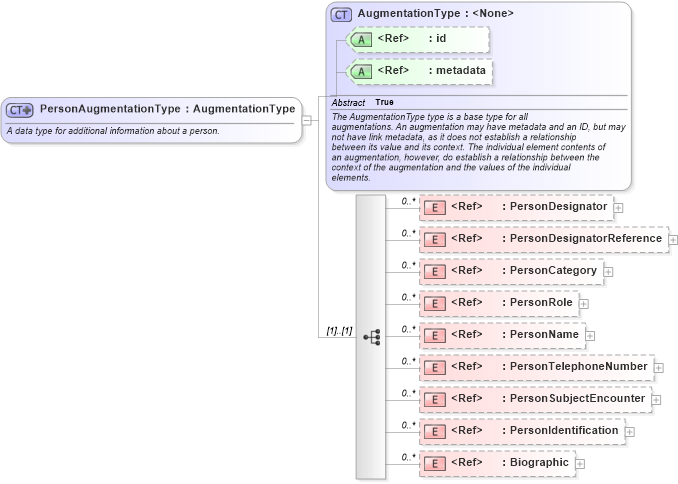

Collapse XSD Schema Diagram:
Drilldown into Biographic in schema screening_xsd Drilldown into PersonIdentification in schema screening_xsd Drilldown into PersonSubjectEncounter in schema screening_xsd Drilldown into PersonTelephoneNumber in schema screening_xsd Drilldown into PersonName in schema niem-core_xsd Drilldown into PersonRole in schema screening_xsd Drilldown into PersonCategory in schema screening_xsd Drilldown into PersonDesignatorReference in schema screening_xsd Drilldown into PersonDesignator in schema screening_xsd Drilldown into metadata in schema structures_xsd Drilldown into id in schema structures_xsd Drilldown into AugmentationType in schema structures_xsdXSD Diagram of PersonAugmentationType in schema screening_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xsd:complexType name="PersonAugmentationType">
    <xsd:annotation>
        <xsd:documentation>A data type for additional information about a person.</xsd:documentation>
        <xsd:appinfo>
            <i:Base i:namespace="http://niem.gov/niem/structures/2.0" i:name="AugmentationType" xmlns:i="http://niem.gov/niem/appinfo/2.0" />
        </xsd:appinfo>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="s:AugmentationType">
            <xsd:sequence>
                <xsd:element ref="scr:PersonDesignator" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="scr:PersonDesignatorReference" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="scr:PersonCategory" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="scr:PersonRole" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="nc:PersonName" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="scr:PersonTelephoneNumber" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="scr:PersonSubjectEncounter" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="scr:PersonIdentification" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="scr:Biographic" minOccurs="0" maxOccurs="unbounded" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PersonDesignator scr:PersonDesignator 0 unbounded
PersonDesignatorReference scr:PersonDesignatorReference 0 unbounded
PersonCategory scr:PersonCategory 0 unbounded
PersonRole scr:PersonRole 0 unbounded
PersonName nc:PersonName 0 unbounded
PersonTelephoneNumber scr:PersonTelephoneNumber 0 unbounded
PersonSubjectEncounter scr:PersonSubjectEncounter 0 unbounded
PersonIdentification scr:PersonIdentification 0 unbounded
Biographic scr:Biographic 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id s:id (Optional)
metadata s:metadata (Optional)
Collapse Derivation Tree:
Collapse References:
scr:PersonAugmentation
