Documentation for National Information Exchange Model (NEIM)
Definition Type: Element
Name: PhysicalFeatureDescriptionDetail
Namespace: http://niem.gov/niem/ansi-nist/2.0
Type: ansi-nist:PhysicalFeatureDescriptionType
Containing Schema: ansi-nist.xsd
Abstract
Documentation:
A complete description of scars, marks, or tattoos visible in a transmitted image

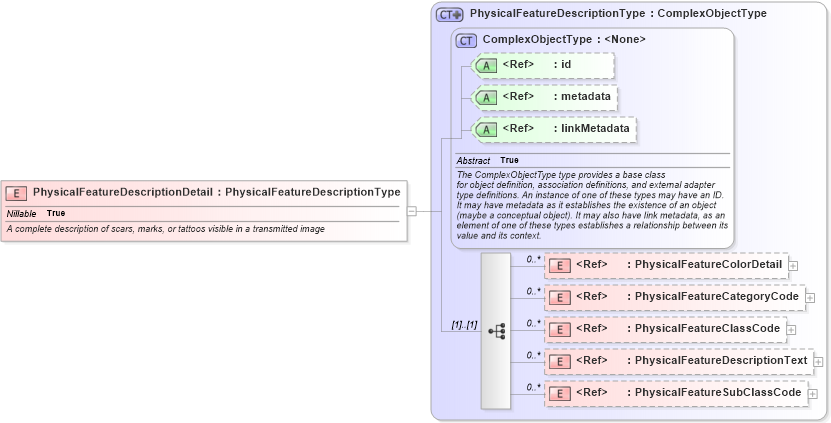

Collapse XSD Schema Diagram:
Drilldown into PhysicalFeatureSubClassCode in schema ansi-nist_xsd Drilldown into PhysicalFeatureDescriptionText in schema ansi-nist_xsd Drilldown into PhysicalFeatureClassCode in schema ansi-nist_xsd Drilldown into PhysicalFeatureCategoryCode in schema ansi-nist_xsd Drilldown into PhysicalFeatureColorDetail in schema ansi-nist_xsd Drilldown into linkMetadata in schema structures_xsd Drilldown into metadata in schema structures_xsd Drilldown into id in schema structures_xsd Drilldown into ComplexObjectType in schema structures_xsd Drilldown into PhysicalFeatureDescriptionType in schema ansi-nist_xsdXSD Diagram of PhysicalFeatureDescriptionDetail in schema ansi-nist_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xsd:element name="PhysicalFeatureDescriptionDetail" type="ansi-nist:PhysicalFeatureDescriptionType" nillable="true">
    <xsd:annotation>
        <xsd:documentation>A complete description of scars, marks, or tattoos visible in a transmitted image</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PhysicalFeatureColorDetail ansi-nist:PhysicalFeatureColorDetail 0 unbounded
PhysicalFeatureCategoryCode ansi-nist:PhysicalFeatureCategoryCode 0 unbounded
PhysicalFeatureClassCode ansi-nist:PhysicalFeatureClassCode 0 unbounded
PhysicalFeatureDescriptionText ansi-nist:PhysicalFeatureDescriptionText 0 unbounded
PhysicalFeatureSubClassCode ansi-nist:PhysicalFeatureSubClassCode 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id s:id (Optional)
metadata s:metadata (Optional)
linkMetadata s:linkMetadata (Optional)
Collapse Derivation Tree:
