Definition Type: ComplexType
Name: PointType3dReq
Namespace: http://www.landxml.org/schema/LandXML-1.1
Type: land:Point3dReq
Containing Schema: LandXML-1.1.xsd
Abstract

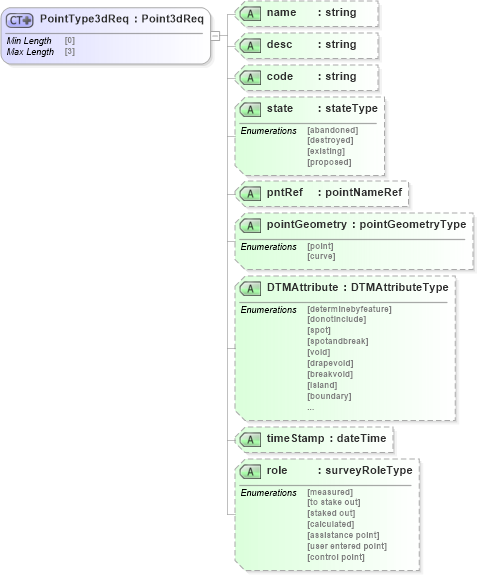

Collapse XSD Schema Diagram:
Drilldown into role in schema landxml-1_1_xsd Drilldown into timeStamp in schema landxml-1_1_xsd Drilldown into DTMAttribute in schema landxml-1_1_xsd Drilldown into pointGeometry in schema landxml-1_1_xsd Drilldown into pntRef in schema landxml-1_1_xsd Drilldown into state in schema landxml-1_1_xsd Drilldown into code in schema landxml-1_1_xsd Drilldown into desc in schema landxml-1_1_xsd Drilldown into name in schema landxml-1_1_xsdXSD Diagram of PointType3dReq in schema landxml-1_1_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xs:complexType name="PointType3dReq">
    <xs:simpleContent>
        <xs:extension base="Point3dReq">
            <xs:attribute name="name" type="xs:string" />
            <xs:attribute name="desc" type="xs:string" />
            <xs:attribute name="code" type="xs:string" />
            <xs:attribute name="state" type="stateType" />
            <xs:attribute name="pntRef" type="pointNameRef" />
            <xs:attribute name="pointGeometry" type="pointGeometryType" />
            <xs:attribute name="DTMAttribute" type="DTMAttributeType" />
            <xs:attribute name="timeStamp" type="xs:dateTime" use="optional" />
            <xs:attribute name="role" type="surveyRoleType" use="optional" />
        </xs:extension>
    </xs:simpleContent>
</xs:complexType>
Collapse Child Attributes:
Name Type Default Value Use
name land:name (Optional)
desc land:desc (Optional)
code land:code (Optional)
state land:state (Optional)
pntRef land:pntRef (Optional)
pointGeometry land:pointGeometry (Optional)
DTMAttribute land:DTMAttribute (Optional)
timeStamp land:timeStamp Optional
role land:role Optional
Collapse Derivation Tree:
Collapse References:
land:Outlet, land:RetWallPnt
