Documentation for National Information Exchange Model (NEIM)
Definition Type: ComplexType
Name: PostalAddressPropertyType
Namespace: http://niem.gov/niem/geospatial/2.0
Type: s:ComplexObjectType
Containing Schema: geospatial.xsd
Abstract
Documentation:
A GML property type to encapsulate or references a NIEM PostalAddress. The Geography Markup Language (GML) specification uses property types and elements to encapsulate or reference GML class elements with identity. This type allows NIEM PostalAddress elements to be referenced from GML conformant application schemas developed for use with NIEM.

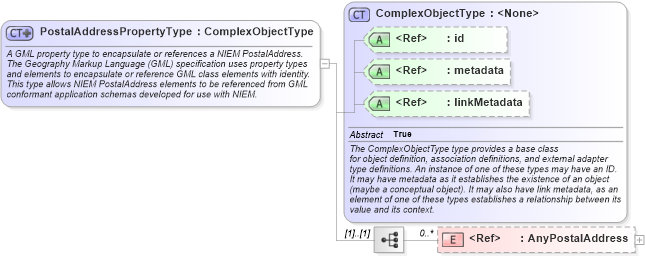

Collapse XSD Schema Diagram:
Drilldown into AnyPostalAddress in schema geospatial_xsd Drilldown into linkMetadata in schema structures_xsd Drilldown into metadata in schema structures_xsd Drilldown into id in schema structures_xsd Drilldown into ComplexObjectType in schema structures_xsdXSD Diagram of PostalAddressPropertyType in schema geospatial_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xsd:complexType name="PostalAddressPropertyType">
    <xsd:annotation>
        <xsd:documentation>A GML property type to encapsulate or references a NIEM PostalAddress. The Geography Markup Language (GML) specification uses property types and elements to encapsulate or reference GML class elements with identity.  This type allows NIEM PostalAddress elements to be referenced from GML conformant application schemas developed for use with NIEM.</xsd:documentation>
        <xsd:appinfo>
            <i:Base i:namespace="http://niem.gov/niem/structures/2.0" i:name="Object" xmlns:i="http://niem.gov/niem/appinfo/2.0" />
        </xsd:appinfo>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="s:ComplexObjectType">
            <xsd:sequence>
                <xsd:element ref="geo:AnyPostalAddress" minOccurs="0" maxOccurs="unbounded" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AnyPostalAddress geo:AnyPostalAddress 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id s:id (Optional)
metadata s:metadata (Optional)
linkMetadata s:linkMetadata (Optional)
Collapse Derivation Tree:
Collapse References:
geo:PostalAddressProperty
