Documentation for National Information Exchange Model (NEIM)
Definition Type: Element
Name: resource
Namespace: urn:oasis:names:tc:emergency:cap:1.1
Containing Schema: cap.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract

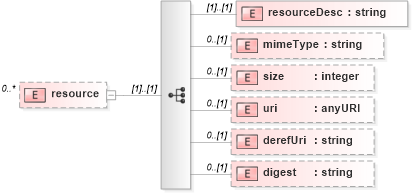

Collapse XSD Schema Diagram:
Drilldown into digest in schema cap_xsd Drilldown into derefUri in schema cap_xsd Drilldown into uri in schema cap_xsd Drilldown into size in schema cap_xsd Drilldown into mimeType in schema cap_xsd Drilldown into resourceDesc in schema cap_xsdXSD Diagram of resource in schema cap_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<element name="resource" minOccurs="0" maxOccurs="unbounded">
    <complexType>
        <sequence>
            <element name="resourceDesc" type="string" />
            <element name="mimeType" type="string" minOccurs="0" />
            <element name="size" type="integer" minOccurs="0" />
            <element name="uri" type="anyURI" minOccurs="0" />
            <element name="derefUri" type="string" minOccurs="0" />
            <element name="digest" type="string" minOccurs="0" />
        </sequence>
    </complexType>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
resourceDesc cap:resourceDesc (1) (1)
mimeType cap:mimeType 0 (1)
size cap:size 0 (1)
uri cap:uri 0 (1)
derefUri cap:derefUri 0 (1)
digest cap:digest 0 (1)
