Definition Type: Element
Name: RetWall
Namespace: http://www.landxml.org/schema/LandXML-1.1
Containing Schema: LandXML-1.1.xsd
Abstract
Documentation:
The retaining wall is defined by a sequential collection of points along the wall. Each point has a location (northing/easting/elevation), height of wall and offset to the wall point.
Collapse XSD Schema Diagram:

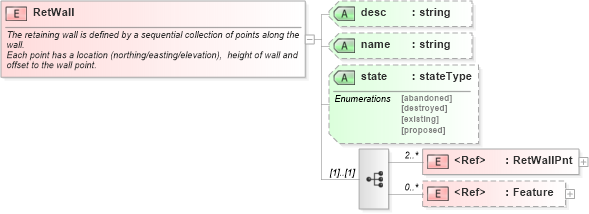

Drilldown into Feature in schema landxml-1_1_xsd Drilldown into RetWallPnt in schema landxml-1_1_xsd Drilldown into state in schema landxml-1_1_xsd Drilldown into name in schema landxml-1_1_xsd Drilldown into desc in schema landxml-1_1_xsdXSD Diagram of RetWall in schema landxml-1_1_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xs:element name="RetWall">
    <xs:annotation>
        <xs:documentation>The retaining wall is defined by a sequential collection of points along the wall.</xs:documentation>
        <xs:documentation>Each point has a location (northing/easting/elevation),  height of wall and offset to the wall point.</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="RetWallPnt" minOccurs="2" maxOccurs="unbounded" />
            <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded" />
        </xs:sequence>
        <xs:attribute name="desc" type="xs:string" />
        <xs:attribute name="name" type="xs:string" />
        <xs:attribute name="state" type="stateType" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
RetWallPnt land:RetWallPnt 2 unbounded
Feature land:Feature 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
desc land:desc (Optional)
name land:name (Optional)
state land:state (Optional)
