Definition Type: Element
Name: SecondaryPlaneAngle
Namespace: http://niem.gov/niem/external/iai-ifc/RC2/ifc/dhs-gmo/1.0.0
Containing Schema: IFC2X2_FINAL.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract

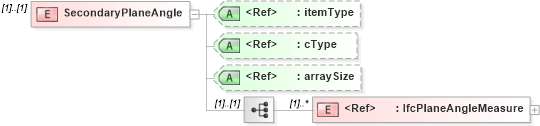

Collapse XSD Schema Diagram:
Drilldown into IfcPlaneAngleMeasure in schema ifc2x2_final_xsd Drilldown into arraySize in schema ex_xsd Drilldown into cType in schema ex_xsd Drilldown into itemType in schema ex_xsdXSD Diagram of SecondaryPlaneAngle in schema ifc2x2_final_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xs:element name="SecondaryPlaneAngle">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="ifc:IfcPlaneAngleMeasure" maxOccurs="unbounded" />
        </xs:sequence>
        <xs:attribute ref="ex:itemType" fixed="ifc:IfcPlaneAngleMeasure" />
        <xs:attribute ref="ex:cType" fixed="list" />
        <xs:attribute ref="ex:arraySize" use="optional" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
IfcPlaneAngleMeasure ifc:IfcPlaneAngleMeasure (1) unbounded
Collapse Child Attributes:
Name Type Default Value Use
itemType ex:itemType (Optional)
cType ex:cType (Optional)
arraySize ex:arraySize Optional
