Definition Type: AttributeGroup
Name: SRSReferenceGroup
Namespace: http://niem.gov/niem/external/ogc-gml/3.1.1/dhs-gmo/1.0.0
Containing Schema: gml.xsd
Documentation:
Optional reference to the CRS used by this geometry, with optional additional information to simplify use when a more complete definition of the CRS is not needed.
Collapse XSD Schema Diagram:

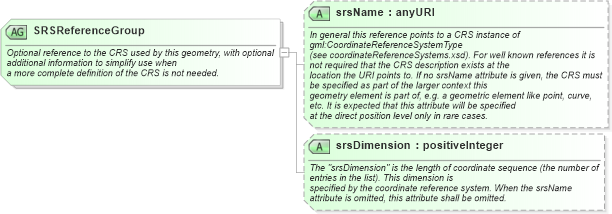

Drilldown into srsDimension in schema gml_xsd Drilldown into srsName in schema gml_xsdXSD Diagram of SRSReferenceGroup in schema gml_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<attributeGroup name="SRSReferenceGroup">
    <annotation>
        <appinfo source="urn:opengis:specification:gml:schema-xsd:geometryBasic0d1d:v3.1.1">geometryBasic0d1d.xsd</appinfo>
        <documentation>Optional reference to the CRS used by this geometry, with optional additional information to simplify use when
			a more complete definition of the CRS is not needed.</documentation>
    </annotation>
    <attribute name="srsName" type="anyURI" use="optional">
        <annotation>
            <documentation>In general this reference points to a CRS instance of gml:CoordinateReferenceSystemType
				(see coordinateReferenceSystems.xsd). For well known references it is not required that the CRS description exists at the
				location the URI points to. If no srsName attribute is given, the CRS must be specified as part of the larger context this
				geometry element is part of, e.g. a geometric element like point, curve, etc. It is expected that this attribute will be specified
				at the direct position level only in rare cases.</documentation>
        </annotation>
    </attribute>
    <attribute name="srsDimension" type="positiveInteger" use="optional">
        <annotation>
            <documentation>The "srsDimension" is the length of coordinate sequence (the number of entries in the list). This dimension is
				specified by the coordinate reference system. When the srsName attribute is omitted, this attribute shall be omitted.</documentation>
        </annotation>
    </attribute>
    <!--
			<attributeGroup ref="gml:SRSInformationGroup"/>
              -->
</attributeGroup>
Collapse Child Attributes:
Name Type Default Value Use
srsName gml:srsName Optional
srsDimension gml:srsDimension Optional
