Definition Type: Element
Name: Styles
Namespace: http://niem.gov/niem/external/iai-ifc/RC2/ifc/dhs-gmo/1.0.0
Containing Schema: IFC2X2_FINAL.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Collapse XSD Schema Diagram:

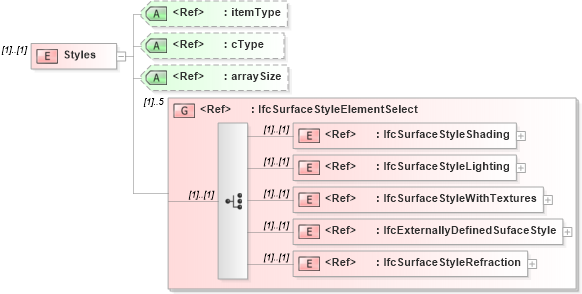

Drilldown into IfcSurfaceStyleRefraction in schema ifc2x2_final_xsd Drilldown into IfcExternallyDefinedSufaceStyle in schema ifc2x2_final_xsd Drilldown into IfcSurfaceStyleWithTextures in schema ifc2x2_final_xsd Drilldown into IfcSurfaceStyleLighting in schema ifc2x2_final_xsd Drilldown into IfcSurfaceStyleShading in schema ifc2x2_final_xsd Drilldown into IfcSurfaceStyleElementSelect in schema ifc2x2_final_xsd Drilldown into arraySize in schema ex_xsd Drilldown into cType in schema ex_xsd Drilldown into itemType in schema ex_xsdXSD Diagram of Styles in schema ifc2x2_final_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xs:element name="Styles">
    <xs:complexType>
        <xs:group ref="ifc:IfcSurfaceStyleElementSelect" maxOccurs="5" />
        <xs:attribute ref="ex:itemType" fixed="ifc:IfcSurfaceStyleElementSelect" />
        <xs:attribute ref="ex:cType" fixed="set" />
        <xs:attribute ref="ex:arraySize" use="optional" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
IfcSurfaceStyleShading ifc:IfcSurfaceStyleShading (1) (1)
IfcSurfaceStyleLighting ifc:IfcSurfaceStyleLighting (1) (1)
IfcSurfaceStyleWithTextures ifc:IfcSurfaceStyleWithTextures (1) (1)
IfcExternallyDefinedSufaceStyle ifc:IfcExternallyDefinedSufaceStyle (1) (1)
IfcSurfaceStyleRefraction ifc:IfcSurfaceStyleRefraction (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
itemType ex:itemType (Optional)
cType ex:cType (Optional)
arraySize ex:arraySize Optional
