Documentation for National Information Exchange Model (NEIM)
Definition Type: ComplexType
Name: SubstanceType
Namespace: http://niem.gov/niem/niem-core/2.0
Type: nc:TangibleItemType
Containing Schema: niem-core.xsd
Abstract
Documentation:
A data type for the matter or substance of which something consists.

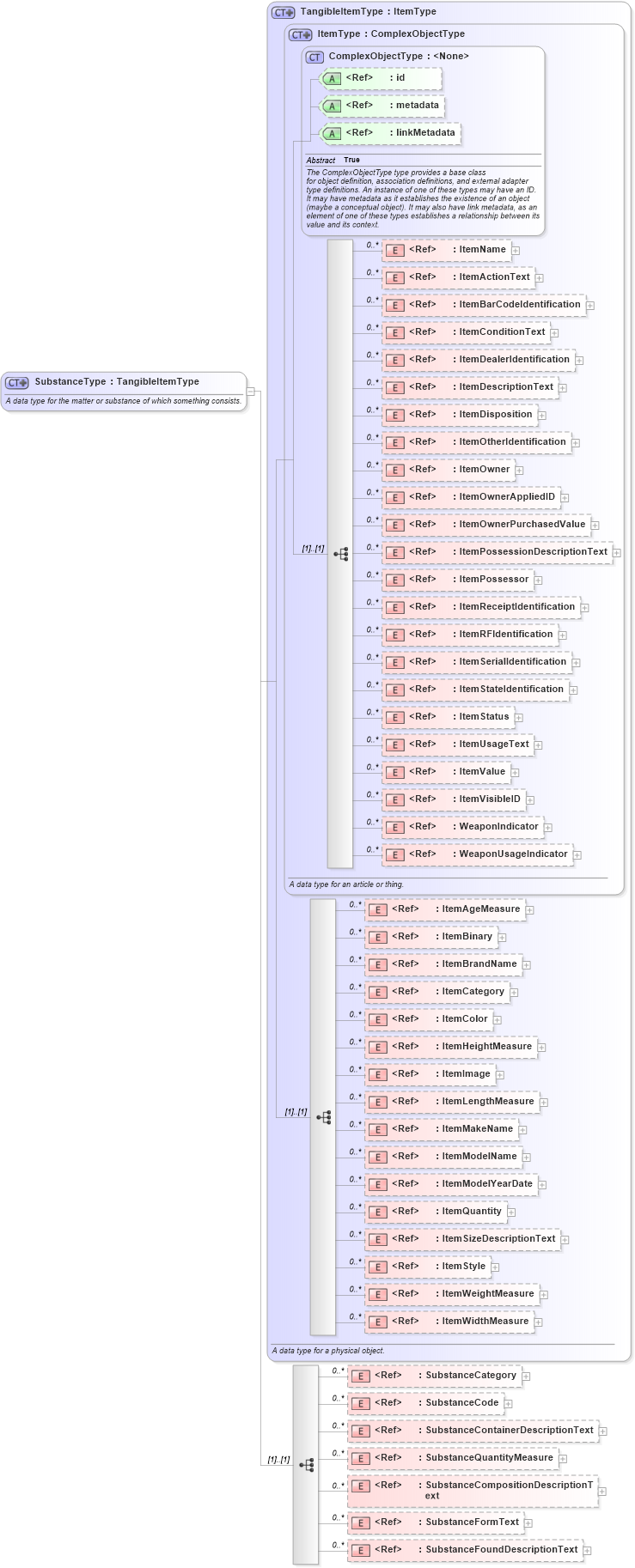

Collapse XSD Schema Diagram:
Drilldown into SubstanceFoundDescriptionText in schema niem-core_xsd Drilldown into SubstanceFormText in schema niem-core_xsd Drilldown into SubstanceCompositionDescriptionText in schema niem-core_xsd Drilldown into SubstanceQuantityMeasure in schema niem-core_xsd Drilldown into SubstanceContainerDescriptionText in schema niem-core_xsd Drilldown into SubstanceCode in schema niem-core_xsd Drilldown into SubstanceCategory in schema niem-core_xsd Drilldown into ItemWidthMeasure in schema niem-core_xsd Drilldown into ItemWeightMeasure in schema niem-core_xsd Drilldown into ItemStyle in schema niem-core_xsd Drilldown into ItemSizeDescriptionText in schema niem-core_xsd Drilldown into ItemQuantity in schema niem-core_xsd Drilldown into ItemModelYearDate in schema niem-core_xsd Drilldown into ItemModelName in schema niem-core_xsd Drilldown into ItemMakeName in schema niem-core_xsd Drilldown into ItemLengthMeasure in schema niem-core_xsd Drilldown into ItemImage in schema niem-core_xsd Drilldown into ItemHeightMeasure in schema niem-core_xsd Drilldown into ItemColor in schema niem-core_xsd Drilldown into ItemCategory in schema niem-core_xsd Drilldown into ItemBrandName in schema niem-core_xsd Drilldown into ItemBinary in schema niem-core_xsd Drilldown into ItemAgeMeasure in schema niem-core_xsd Drilldown into WeaponUsageIndicator in schema niem-core_xsd Drilldown into WeaponIndicator in schema niem-core_xsd Drilldown into ItemVisibleID in schema niem-core_xsd Drilldown into ItemValue in schema niem-core_xsd Drilldown into ItemUsageText in schema niem-core_xsd Drilldown into ItemStatus in schema niem-core_xsd Drilldown into ItemStateIdentification in schema niem-core_xsd Drilldown into ItemSerialIdentification in schema niem-core_xsd Drilldown into ItemRFIdentification in schema niem-core_xsd Drilldown into ItemReceiptIdentification in schema niem-core_xsd Drilldown into ItemPossessor in schema niem-core_xsd Drilldown into ItemPossessionDescriptionText in schema niem-core_xsd Drilldown into ItemOwnerPurchasedValue in schema niem-core_xsd Drilldown into ItemOwnerAppliedID in schema niem-core_xsd Drilldown into ItemOwner in schema niem-core_xsd Drilldown into ItemOtherIdentification in schema niem-core_xsd Drilldown into ItemDisposition in schema niem-core_xsd Drilldown into ItemDescriptionText in schema niem-core_xsd Drilldown into ItemDealerIdentification in schema niem-core_xsd Drilldown into ItemConditionText in schema niem-core_xsd Drilldown into ItemBarCodeIdentification in schema niem-core_xsd Drilldown into ItemActionText in schema niem-core_xsd Drilldown into ItemName in schema niem-core_xsd Drilldown into linkMetadata in schema structures_xsd Drilldown into metadata in schema structures_xsd Drilldown into id in schema structures_xsd Drilldown into ComplexObjectType in schema structures_xsd Drilldown into ItemType in schema niem-core_xsd Drilldown into TangibleItemType in schema niem-core_xsdXSD Diagram of SubstanceType in schema niem-core_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xsd:complexType name="SubstanceType">
    <xsd:annotation>
        <xsd:documentation>A data type for the matter or substance of which something consists.</xsd:documentation>
        <xsd:appinfo>
            <i:Base i:name="TangibleItemType" xmlns:i="http://niem.gov/niem/appinfo/2.0" />
        </xsd:appinfo>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="nc:TangibleItemType">
            <xsd:sequence>
                <xsd:element ref="nc:SubstanceCategory" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="nc:SubstanceCode" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="nc:SubstanceContainerDescriptionText" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="nc:SubstanceQuantityMeasure" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="nc:SubstanceCompositionDescriptionText" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="nc:SubstanceFormText" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="nc:SubstanceFoundDescriptionText" minOccurs="0" maxOccurs="unbounded" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ItemName nc:ItemName 0 unbounded
ItemActionText nc:ItemActionText 0 unbounded
ItemBarCodeIdentification nc:ItemBarCodeIdentification 0 unbounded
ItemConditionText nc:ItemConditionText 0 unbounded
ItemDealerIdentification nc:ItemDealerIdentification 0 unbounded
ItemDescriptionText nc:ItemDescriptionText 0 unbounded
ItemDisposition nc:ItemDisposition 0 unbounded
ItemOtherIdentification nc:ItemOtherIdentification 0 unbounded
ItemOwner nc:ItemOwner 0 unbounded
ItemOwnerAppliedID nc:ItemOwnerAppliedID 0 unbounded
ItemOwnerPurchasedValue nc:ItemOwnerPurchasedValue 0 unbounded
ItemPossessionDescriptionText nc:ItemPossessionDescriptionText 0 unbounded
ItemPossessor nc:ItemPossessor 0 unbounded
ItemReceiptIdentification nc:ItemReceiptIdentification 0 unbounded
ItemRFIdentification nc:ItemRFIdentification 0 unbounded
ItemSerialIdentification nc:ItemSerialIdentification 0 unbounded
ItemStateIdentification nc:ItemStateIdentification 0 unbounded
ItemStatus nc:ItemStatus 0 unbounded
ItemUsageText nc:ItemUsageText 0 unbounded
ItemValue nc:ItemValue 0 unbounded
ItemVisibleID nc:ItemVisibleID 0 unbounded
WeaponIndicator nc:WeaponIndicator 0 unbounded
WeaponUsageIndicator nc:WeaponUsageIndicator 0 unbounded
ItemAgeMeasure nc:ItemAgeMeasure 0 unbounded
ItemBinary nc:ItemBinary 0 unbounded
ItemBrandName nc:ItemBrandName 0 unbounded
ItemCategory nc:ItemCategory 0 unbounded
ItemColor nc:ItemColor 0 unbounded
ItemHeightMeasure nc:ItemHeightMeasure 0 unbounded
ItemImage nc:ItemImage 0 unbounded
ItemLengthMeasure nc:ItemLengthMeasure 0 unbounded
ItemMakeName nc:ItemMakeName 0 unbounded
ItemModelName nc:ItemModelName 0 unbounded
ItemModelYearDate nc:ItemModelYearDate 0 unbounded
ItemQuantity nc:ItemQuantity 0 unbounded
ItemSizeDescriptionText nc:ItemSizeDescriptionText 0 unbounded
ItemStyle nc:ItemStyle 0 unbounded
ItemWeightMeasure nc:ItemWeightMeasure 0 unbounded
ItemWidthMeasure nc:ItemWidthMeasure 0 unbounded
SubstanceCategory nc:SubstanceCategory 0 unbounded
SubstanceCode nc:SubstanceCode 0 unbounded
SubstanceContainerDescriptionText nc:SubstanceContainerDescriptionText 0 unbounded
SubstanceQuantityMeasure nc:SubstanceQuantityMeasure 0 unbounded
SubstanceCompositionDescriptionText nc:SubstanceCompositionDescriptionText 0 unbounded
SubstanceFormText nc:SubstanceFormText 0 unbounded
SubstanceFoundDescriptionText nc:SubstanceFoundDescriptionText 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id s:id (Optional)
metadata s:metadata (Optional)
linkMetadata s:linkMetadata (Optional)
Collapse Derivation Tree:
Collapse References:
nc:Chemical, nc:DrugType, nc:HazardousMaterial, nc:Substance
