Definition Type: Element
Name: Superelevation
Namespace: http://www.landxml.org/schema/LandXML-1.1
Containing Schema: LandXML-1.1.xsd
Abstract

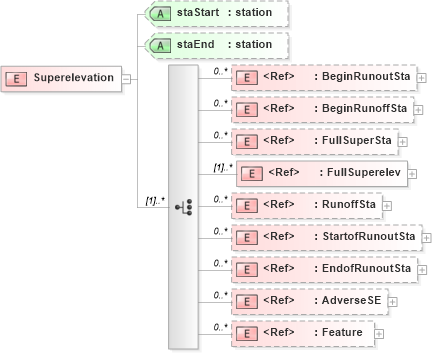

Collapse XSD Schema Diagram:
Drilldown into Feature in schema landxml-1_1_xsd Drilldown into AdverseSE in schema landxml-1_1_xsd Drilldown into EndofRunoutSta in schema landxml-1_1_xsd Drilldown into StartofRunoutSta in schema landxml-1_1_xsd Drilldown into RunoffSta in schema landxml-1_1_xsd Drilldown into FullSuperelev in schema landxml-1_1_xsd Drilldown into FullSuperSta in schema landxml-1_1_xsd Drilldown into BeginRunoffSta in schema landxml-1_1_xsd Drilldown into BeginRunoutSta in schema landxml-1_1_xsd Drilldown into staEnd in schema landxml-1_1_xsd Drilldown into staStart in schema landxml-1_1_xsdXSD Diagram of Superelevation in schema landxml-1_1_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xs:element name="Superelevation">
    <xs:complexType>
        <xs:choice maxOccurs="unbounded">
            <xs:element ref="BeginRunoutSta" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="BeginRunoffSta" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="FullSuperSta" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="FullSuperelev" maxOccurs="unbounded" />
            <xs:element ref="RunoffSta" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="StartofRunoutSta" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="EndofRunoutSta" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="AdverseSE" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded" />
        </xs:choice>
        <xs:attribute name="staStart" type="station" />
        <xs:attribute name="staEnd" type="station" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
BeginRunoutSta land:BeginRunoutSta 0 unbounded
BeginRunoffSta land:BeginRunoffSta 0 unbounded
FullSuperSta land:FullSuperSta 0 unbounded
FullSuperelev land:FullSuperelev (1) unbounded
RunoffSta land:RunoffSta 0 unbounded
StartofRunoutSta land:StartofRunoutSta 0 unbounded
EndofRunoutSta land:EndofRunoutSta 0 unbounded
AdverseSE land:AdverseSE 0 unbounded
Feature land:Feature 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
staStart land:staStart (Optional)
staEnd land:staEnd (Optional)
