Definition Type: Element
Name: TrafficControl
Namespace: http://www.landxml.org/schema/LandXML-1.1
Containing Schema: LandXML-1.1.xsd
Abstract

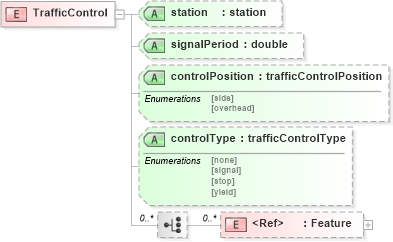

Collapse XSD Schema Diagram:
Drilldown into Feature in schema landxml-1_1_xsd Drilldown into controlType in schema landxml-1_1_xsd Drilldown into controlPosition in schema landxml-1_1_xsd Drilldown into signalPeriod in schema landxml-1_1_xsd Drilldown into station in schema landxml-1_1_xsdXSD Diagram of TrafficControl in schema landxml-1_1_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xs:element name="TrafficControl">
    <xs:complexType>
        <xs:choice minOccurs="0" maxOccurs="unbounded">
            <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded" />
        </xs:choice>
        <xs:attribute name="station" type="station" />
        <xs:attribute name="signalPeriod" type="xs:double" />
        <xs:attribute name="controlPosition" type="trafficControlPosition" />
        <xs:attribute name="controlType" type="trafficControlType" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Feature land:Feature 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
station land:station (Optional)
signalPeriod land:signalPeriod (Optional)
controlPosition land:controlPosition (Optional)
controlType land:controlType (Optional)
