Documentation for National Information Exchange Model (NEIM)
Definition Type: Element
Name: TransactionDate
Namespace: http://niem.gov/niem/ansi-nist/2.0
Type: nc:DateType
Containing Schema: ansi-nist.xsd
Abstract
Documentation:
Date the transaction was sent by the user

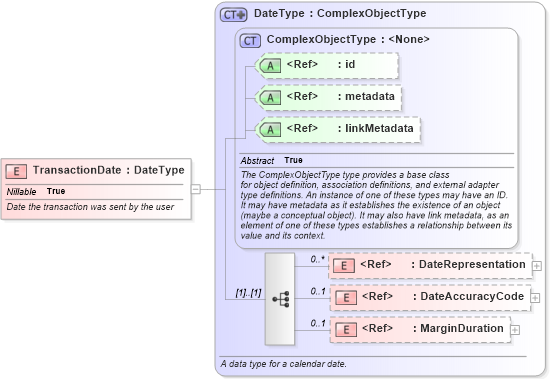

Collapse XSD Schema Diagram:
Drilldown into MarginDuration in schema niem-core_xsd Drilldown into DateAccuracyCode in schema niem-core_xsd Drilldown into DateRepresentation in schema niem-core_xsd Drilldown into linkMetadata in schema structures_xsd Drilldown into metadata in schema structures_xsd Drilldown into id in schema structures_xsd Drilldown into ComplexObjectType in schema structures_xsd Drilldown into DateType in schema niem-core_xsdXSD Diagram of TransactionDate in schema ansi-nist_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xsd:element name="TransactionDate" type="nc:DateType" nillable="true">
    <xsd:annotation>
        <xsd:documentation>Date the transaction was sent by the user</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DateRepresentation nc:DateRepresentation 0 unbounded
DateAccuracyCode nc:DateAccuracyCode 0 1
MarginDuration nc:MarginDuration 0 1
Collapse Child Attributes:
Name Type Default Value Use
id s:id (Optional)
metadata s:metadata (Optional)
linkMetadata s:linkMetadata (Optional)
Collapse Derivation Tree:
