Definition Type: Element
Name: UnitComponent
Namespace: http://niem.gov/niem/external/iai-ifc/RC2/ifc/dhs-gmo/1.0.0
Containing Schema: IFC2X2_FINAL.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract

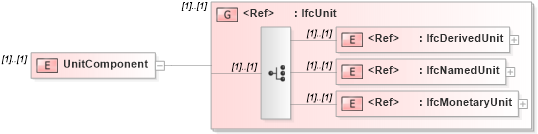

Collapse XSD Schema Diagram:
Drilldown into IfcMonetaryUnit in schema ifc2x2_final_xsd Drilldown into IfcNamedUnit in schema ifc2x2_final_xsd Drilldown into IfcDerivedUnit in schema ifc2x2_final_xsd Drilldown into IfcUnit in schema ifc2x2_final_xsdXSD Diagram of UnitComponent in schema ifc2x2_final_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xs:element name="UnitComponent">
    <xs:complexType>
        <xs:group ref="ifc:IfcUnit" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
IfcDerivedUnit ifc:IfcDerivedUnit (1) (1)
IfcNamedUnit ifc:IfcNamedUnit (1) (1)
IfcMonetaryUnit ifc:IfcMonetaryUnit (1) (1)
