Documentation for National Information Exchange Model (NEIM)
Definition Type: ComplexType
Name: UnitDefinitionType
Namespace: http://niem.gov/niem/external/ogc-gml/3.1.1/dhs-gmo/1.0.0
Type: gml:DefinitionType
Containing Schema: gml.xsd
Abstract
Documentation:
Definition of a unit of measure (or uom). The definition includes a quantityType property, which indicates the phenomenon to which the units apply, and a catalogSymbol, which gives the short symbol used for this unit. This element is used when the relationship of this unit to other units or units systems is unknown.

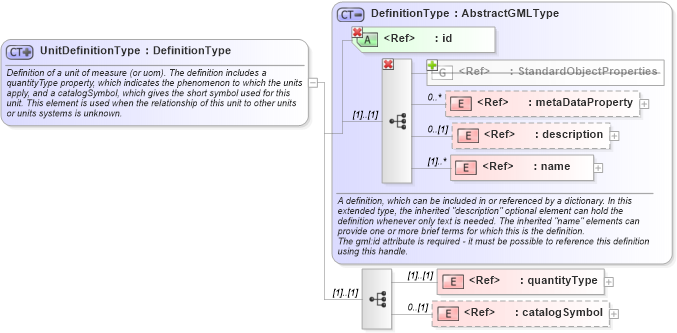

Collapse XSD Schema Diagram:
Drilldown into catalogSymbol in schema gml_xsd Drilldown into quantityType in schema gml_xsd Drilldown into name in schema gml_xsd Drilldown into description in schema gml_xsd Drilldown into metaDataProperty in schema gml_xsd Drilldown into StandardObjectProperties in schema gml_xsd Drilldown into id in schema gml_xsd Drilldown into DefinitionType in schema gml_xsdXSD Diagram of UnitDefinitionType in schema gml_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<complexType name="UnitDefinitionType">
    <annotation>
        <documentation>Definition of a unit of measure (or uom). The definition includes a quantityType property, which indicates the phenomenon to which the units apply, and a catalogSymbol, which gives the short symbol used for this unit. This element is used when the relationship of this unit to other units or units systems is unknown.</documentation>
    </annotation>
    <complexContent>
        <extension base="gml:DefinitionType">
            <sequence>
                <element ref="gml:quantityType" />
                <element ref="gml:catalogSymbol" minOccurs="0" />
            </sequence>
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
name gml:name 0 unbounded
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
name gml:name (1) unbounded
quantityType gml:quantityType (1) (1)
catalogSymbol gml:catalogSymbol 0 (1)
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
Collapse References:
gml:BaseUnitType, gml:ConventionalUnitType, gml:DerivedUnitType, gmx:ML_UnitDefinition_Type, gml:UnitDefinitiongmx:UomAlternativeExpression_Type,
