Definition Type: Element
Name: ZoneWidth
Namespace: http://www.landxml.org/schema/LandXML-1.1
Containing Schema: LandXML-1.1.xsd
Abstract

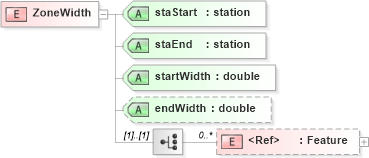

Collapse XSD Schema Diagram:
Drilldown into Feature in schema landxml-1_1_xsd Drilldown into endWidth in schema landxml-1_1_xsd Drilldown into startWidth in schema landxml-1_1_xsd Drilldown into staEnd in schema landxml-1_1_xsd Drilldown into staStart in schema landxml-1_1_xsdXSD Diagram of ZoneWidth in schema landxml-1_1_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xs:element name="ZoneWidth">
    <xs:complexType>
        <xs:choice>
            <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded" />
        </xs:choice>
        <xs:attribute name="staStart" type="station" use="required" />
        <xs:attribute name="staEnd" type="station" use="required" />
        <xs:attribute name="startWidth" type="xs:double" use="required" />
        <xs:attribute name="endWidth" type="xs:double" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Feature land:Feature 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
staStart land:staStart Required
staEnd land:staEnd Required
startWidth land:startWidth Required
endWidth land:endWidth (Optional)
