Definition Type: Element
Name: Catalog
Containing Schema: NewsML_1.2.xsd
Abstract
Documentation:
=================================== Catalog ==================================== A container for Resource and TopicUse elements. Resource elements map URNs to URLs and indicate default vocabularies which apply to the formal names of certain elements within the subtree that begins with the immediate parent of the Catalog element. TopicUse elements indicate where in the NewsML document certain Topics are used. The optional Href attribute provides a pointer to a Catalog element elsewhere in this or another document. Its value consists of a # character followed by the value of the Duid attribute of the referenced Catalog element and preceded, if the referenced Catalog is not in the current document, by an http URL or a NewsML URN identifying the document or NewsItem in which the Catalog appears. If the Href attribute is present on a Catalog element, then that element should be empty. If it contains subelements, the NewsML system may signal an error. ================================================================================

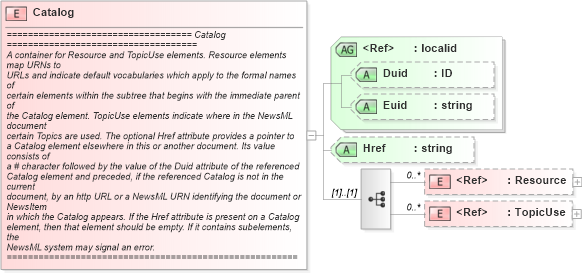

Collapse XSD Schema Diagram:
Drilldown into TopicUse in schema newsml_1_2_xsd Drilldown into Resource in schema newsml_1_2_xsd Drilldown into Href in schema newsml_1_2_xsd Drilldown into Euid in schema newsml_1_2_xsd Drilldown into Duid in schema newsml_1_2_xsd Drilldown into localid in schema newsml_1_2_xsdXSD Diagram of Catalog in schema newsml_1_2_xsd (News Markup Language (NewsML))
Collapse XSD Schema Code:
<xs:element name="Catalog">
    <xs:annotation>
        <xs:documentation>
=================================== Catalog ====================================
A container for Resource and TopicUse elements. Resource elements map URNs to
URLs and indicate default vocabularies which apply to the formal names of
certain elements within the subtree that begins with the immediate parent of
the Catalog element. TopicUse elements indicate where in the NewsML document
certain Topics are used. The optional Href attribute provides a pointer to
a Catalog element elsewhere in this or another document. Its value consists of
a # character followed by the value of the Duid attribute of the referenced
Catalog element and preceded, if the referenced Catalog is not in the current
document, by an http URL or a NewsML URN identifying the document or NewsItem
in which the Catalog appears. If the Href attribute is present on a Catalog
element, then that element should be empty. If it contains subelements, the
NewsML system may signal an error.
================================================================================

			</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="Resource" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="TopicUse" minOccurs="0" maxOccurs="unbounded" />
        </xs:sequence>
        <xs:attributeGroup ref="localid" />
        <xs:attribute name="Href" type="xs:string" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Resource Resource 0 unbounded
TopicUse TopicUse 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
Duid Duid (Optional)
Euid Euid (Optional)
Href Href (Optional)
