Definition Type: Element
Name: FormalName
Type: string:http://www.w3.org/2001/XMLSchema
Containing Schema: NewsML_1.2.xsd
Abstract
Documentation:
================================= FormalName =================================== A string of characters whose meaning is determined by a naming scheme within a controlled vocabulary. The controlled vocabulary may (but is not required to) take the form of a NewsML TopicSet. The optional Scheme attribute determines which naming scheme applies, when several exist within the same controlled vocabulary. ================================================================================

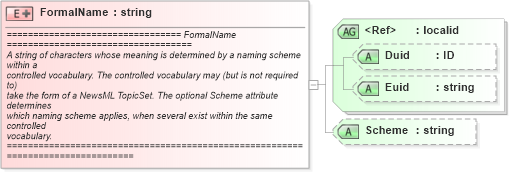

Collapse XSD Schema Diagram:
Drilldown into Scheme in schema newsml_1_2_xsd Drilldown into Euid in schema newsml_1_2_xsd Drilldown into Duid in schema newsml_1_2_xsd Drilldown into localid in schema newsml_1_2_xsdXSD Diagram of FormalName in schema newsml_1_2_xsd (News Markup Language (NewsML))
Collapse XSD Schema Code:
<xs:element name="FormalName">
    <xs:annotation>
        <xs:documentation>
================================= FormalName ===================================
A string of characters whose meaning is determined by a naming scheme within a
controlled vocabulary. The controlled vocabulary may (but is not required to)
take the form of a NewsML TopicSet. The optional Scheme attribute determines
which naming scheme applies, when several exist within the same controlled
vocabulary.
================================================================================

			</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:simpleContent>
            <xs:extension base="xs:string">
                <xs:attributeGroup ref="localid" />
                <xs:attribute name="Scheme" type="xs:string" />
            </xs:extension>
        </xs:simpleContent>
    </xs:complexType>
</xs:element>
Collapse Child Attributes:
Name Type Default Value Use
Duid Duid (Optional)
Euid Euid (Optional)
Scheme Scheme (Optional)
