Definition Type: Element
Name: Instruction
Containing Schema: NewsML_1.2.xsd
Abstract
Documentation:
================================= Instruction ================================== An instruction from a news provider to the recipient of a NewsItem. A special case of Instruction is an indication of the effect the current revision of a NewsItem has on the status of any previous revisions of the NewsItem that may still be on the recipient's system. In this case, it will contain one or more RevisionStatus elements. Otherwise, the value of the FormalName attribute is a formal name for the Instruction, and its meaning is determined by a controlled vocabulary as described in the comment to the formalname ENTITY declaration above. ================================================================================

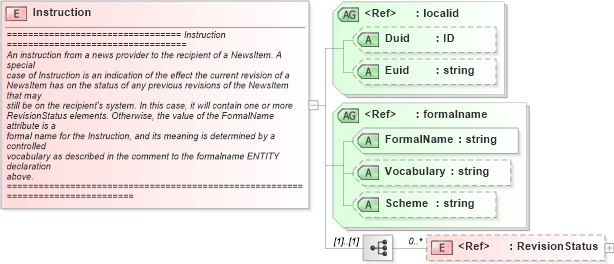

Collapse XSD Schema Diagram:
Drilldown into RevisionStatus in schema newsml_1_2_xsd Drilldown into Scheme in schema newsml_1_2_xsd Drilldown into Vocabulary in schema newsml_1_2_xsd Drilldown into FormalName in schema newsml_1_2_xsd Drilldown into formalname in schema newsml_1_2_xsd Drilldown into Euid in schema newsml_1_2_xsd Drilldown into Duid in schema newsml_1_2_xsd Drilldown into localid in schema newsml_1_2_xsdXSD Diagram of Instruction in schema newsml_1_2_xsd (News Markup Language (NewsML))
Collapse XSD Schema Code:
<xs:element name="Instruction">
    <xs:annotation>
        <xs:documentation>
================================= Instruction ==================================
An instruction from a news provider to the recipient of a NewsItem. A special
case of Instruction is an indication of the effect the current revision of a
NewsItem has on the status of any previous revisions of the NewsItem that may
still be on the recipient's system. In this case, it will contain one or more
RevisionStatus elements. Otherwise, the value of the FormalName attribute is a
formal name for the Instruction, and its meaning is determined by a controlled
vocabulary as described in the comment to the formalname ENTITY declaration
above.
================================================================================

			</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="RevisionStatus" minOccurs="0" maxOccurs="unbounded" />
        </xs:sequence>
        <xs:attributeGroup ref="localid" />
        <xs:attributeGroup ref="formalname" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
RevisionStatus RevisionStatus 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
Duid Duid (Optional)
Euid Euid (Optional)
FormalName FormalName Required
Vocabulary Vocabulary (Optional)
Scheme Scheme (Optional)
