Definition Type: Element
Name: NewsItemRef
Containing Schema: NewsML_1.2.xsd
Abstract
Documentation:
================================= NewsItemRef ================================== A pointer to a NewsItem that is deemed to replace the NewsItemRef element. The NewsItem attribute is a pointer to the relevant NewsItem. Its value can be an http URL, or a NewsML URN as described in the comment to PublicIdentifier, or a fragment identifier consisting of a # character followed by the Duid of a NewsItem in the current document. ================================================================================

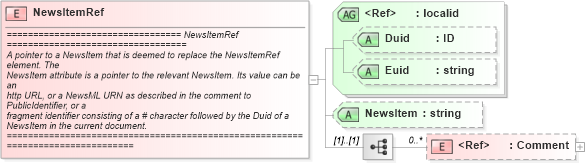

Collapse XSD Schema Diagram:
Drilldown into Comment in schema newsml_1_2_xsd Drilldown into NewsItem in schema newsml_1_2_xsd Drilldown into Euid in schema newsml_1_2_xsd Drilldown into Duid in schema newsml_1_2_xsd Drilldown into localid in schema newsml_1_2_xsdXSD Diagram of NewsItemRef in schema newsml_1_2_xsd (News Markup Language (NewsML))
Collapse XSD Schema Code:
<xs:element name="NewsItemRef">
    <xs:annotation>
        <xs:documentation>
================================= NewsItemRef ==================================
A pointer to a NewsItem that is deemed to replace the NewsItemRef element. The
NewsItem attribute is a pointer to the relevant NewsItem. Its value can be an
http URL, or a NewsML URN as described in the comment to PublicIdentifier, or a
fragment identifier consisting of a # character followed by the Duid of a
NewsItem in the current document.
================================================================================

			</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="Comment" minOccurs="0" maxOccurs="unbounded" />
        </xs:sequence>
        <xs:attributeGroup ref="localid" />
        <xs:attribute name="NewsItem" type="xs:string" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Comment Comment 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
Duid Duid (Optional)
Euid Euid (Optional)
NewsItem NewsItem (Optional)
