Documentation for News Markup Language (NewsML)
Definition Type: Element
Name: NewsLines
Containing Schema: NewsML_1.2.xsd
Abstract
Documentation:
================================== NewsLines =================================== A container for all the NewsLines that a NewsComponent has. Made an "or" group and ByLineTitle added in version 1.1 ================================================================================

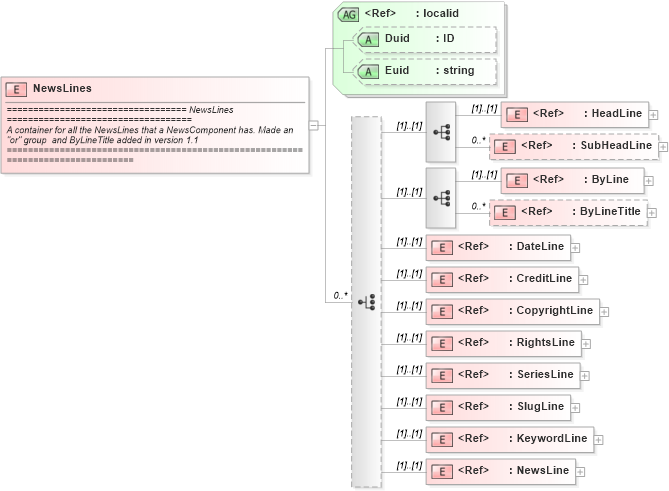

Collapse XSD Schema Diagram:
Drilldown into NewsLine in schema newsml_1_2_xsd Drilldown into KeywordLine in schema newsml_1_2_xsd Drilldown into SlugLine in schema newsml_1_2_xsd Drilldown into SeriesLine in schema newsml_1_2_xsd Drilldown into RightsLine in schema newsml_1_2_xsd Drilldown into CopyrightLine in schema newsml_1_2_xsd Drilldown into CreditLine in schema newsml_1_2_xsd Drilldown into DateLine in schema newsml_1_2_xsd Drilldown into ByLineTitle in schema newsml_1_2_xsd Drilldown into ByLine in schema newsml_1_2_xsd Drilldown into SubHeadLine in schema newsml_1_2_xsd Drilldown into HeadLine in schema newsml_1_2_xsd Drilldown into Euid in schema newsml_1_2_xsd Drilldown into Duid in schema newsml_1_2_xsd Drilldown into localid in schema newsml_1_2_xsdXSD Diagram of NewsLines in schema newsml_1_2_xsd (News Markup Language (NewsML))
Collapse XSD Schema Code:
<xs:element name="NewsLines">
    <xs:annotation>
        <xs:documentation>
================================== NewsLines ===================================
A container for all the NewsLines that a NewsComponent has. Made an "or" group  and ByLineTitle added in version 1.1
================================================================================
			</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:choice minOccurs="0" maxOccurs="unbounded">
            <xs:sequence>
                <xs:element ref="HeadLine" />
                <xs:element ref="SubHeadLine" minOccurs="0" maxOccurs="unbounded" />
            </xs:sequence>
            <xs:sequence>
                <xs:element ref="ByLine" />
                <xs:element ref="ByLineTitle" minOccurs="0" maxOccurs="unbounded" />
            </xs:sequence>
            <xs:element ref="DateLine" />
            <xs:element ref="CreditLine" />
            <xs:element ref="CopyrightLine" />
            <xs:element ref="RightsLine" />
            <xs:element ref="SeriesLine" />
            <xs:element ref="SlugLine" />
            <xs:element ref="KeywordLine" />
            <xs:element ref="NewsLine" />
        </xs:choice>
        <xs:attributeGroup ref="localid" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
HeadLine HeadLine (1) (1)
SubHeadLine SubHeadLine 0 unbounded
ByLine ByLine (1) (1)
ByLineTitle ByLineTitle 0 unbounded
DateLine DateLine (1) (1)
CreditLine CreditLine (1) (1)
CopyrightLine CopyrightLine (1) (1)
RightsLine RightsLine (1) (1)
SeriesLine SeriesLine (1) (1)
SlugLine SlugLine (1) (1)
KeywordLine KeywordLine (1) (1)
NewsLine NewsLine (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
Duid Duid (Optional)
Euid Euid (Optional)
