Definition Type: Element
Name: Source
Containing Schema: NewsML_1.2.xsd
Abstract
Documentation:
==================================== Source ==================================== An individual and/or company or organisation that provided source material for a news object. The optional NewsItem attribute must be present in the case of a syndicated NewsItem. It provides the URN of the NewsItem that is being syndicated. Note that a sequence of Source elements can be used to indicate the sequence of syndicators through which a NewsItem has passed. ================================================================================

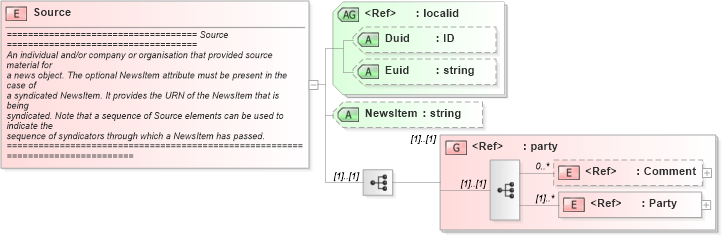

Collapse XSD Schema Diagram:
Drilldown into Party in schema newsml_1_2_xsd Drilldown into Comment in schema newsml_1_2_xsd Drilldown into party in schema newsml_1_2_xsd Drilldown into NewsItem in schema newsml_1_2_xsd Drilldown into Euid in schema newsml_1_2_xsd Drilldown into Duid in schema newsml_1_2_xsd Drilldown into localid in schema newsml_1_2_xsdXSD Diagram of Source in schema newsml_1_2_xsd (News Markup Language (NewsML))
Collapse XSD Schema Code:
<xs:element name="Source">
    <xs:annotation>
        <xs:documentation>
==================================== Source ====================================
An individual and/or company or organisation that provided source material for
a news object. The optional NewsItem attribute must be present in the case of
a syndicated NewsItem. It provides the URN of the NewsItem that is being
syndicated. Note that a sequence of Source elements can be used to indicate the
sequence of syndicators through which a NewsItem has passed.
================================================================================

			</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:sequence>
            <xs:group ref="party" />
        </xs:sequence>
        <xs:attributeGroup ref="localid" />
        <xs:attribute name="NewsItem" type="xs:string" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Comment Comment 0 unbounded
Party Party (1) unbounded
<xs:group> party (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
Duid Duid (Optional)
Euid Euid (Optional)
NewsItem NewsItem (Optional)
