Definition Type: Element
Name: TransmissionId
Type: string:http://www.w3.org/2001/XMLSchema
Containing Schema: NewsML_1.2.xsd
Abstract
Documentation:
================================ TransmissionId ================================ An identifier for the NewsML document transmission. This should be unique among all distinct transmissions from the same publisher. If a transmission is repeated (perhaps because the sender is not confident that it was successfully received) then the same TransmissionId content may be used, but a Repeat attribute should be provided to distinguish the second transmission from the first. The form that the value of the Repeat attribute takes is determined by the provider. Likewise, the format for the TransmissionId itself is for the provider to decide. It could for example consist of a channel identifier followed by a sequence number. ================================================================================
Collapse XSD Schema Diagram:

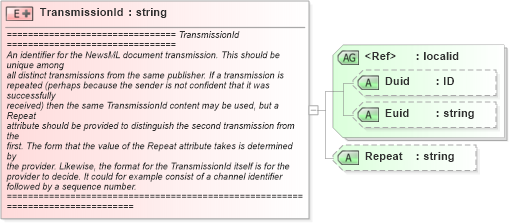

Drilldown into Repeat in schema newsml_1_2_xsd Drilldown into Euid in schema newsml_1_2_xsd Drilldown into Duid in schema newsml_1_2_xsd Drilldown into localid in schema newsml_1_2_xsdXSD Diagram of TransmissionId in schema newsml_1_2_xsd (News Markup Language (NewsML))
Collapse XSD Schema Code:
<xs:element name="TransmissionId">
    <xs:annotation>
        <xs:documentation>
================================ TransmissionId ================================
An identifier for the NewsML document transmission. This should be unique among
all distinct transmissions from the same publisher. If a transmission is
repeated (perhaps because the sender is not confident that it was successfully
received) then the same TransmissionId content may be used, but a Repeat
attribute should be provided to distinguish the second transmission from the
first. The form that the value of the Repeat attribute takes is determined by
the provider. Likewise, the format for the TransmissionId itself is for the
provider to decide. It could for example consist of a channel identifier
followed by a sequence number.
================================================================================

			</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:simpleContent>
            <xs:extension base="xs:string">
                <xs:attributeGroup ref="localid" />
                <xs:attribute name="Repeat" type="xs:string" />
            </xs:extension>
        </xs:simpleContent>
    </xs:complexType>
</xs:element>
Collapse Child Attributes:
Name Type Default Value Use
Duid Duid (Optional)
Euid Euid (Optional)
Repeat Repeat (Optional)
