Documentation for News Markup Language (NewsML) - Core
Definition Type: ComplexType
Name: FlexRelatedPropType
Namespace: http://iptc.org/std/nar/2006-10-01/
Type: nsB:FlexProp2Type
Containing Schema: NewsML-G2_2.23-spec-All-Core.xsd
Abstract
Documentation:
Flexible generic type for both controlled and uncontrolled values of a related concept

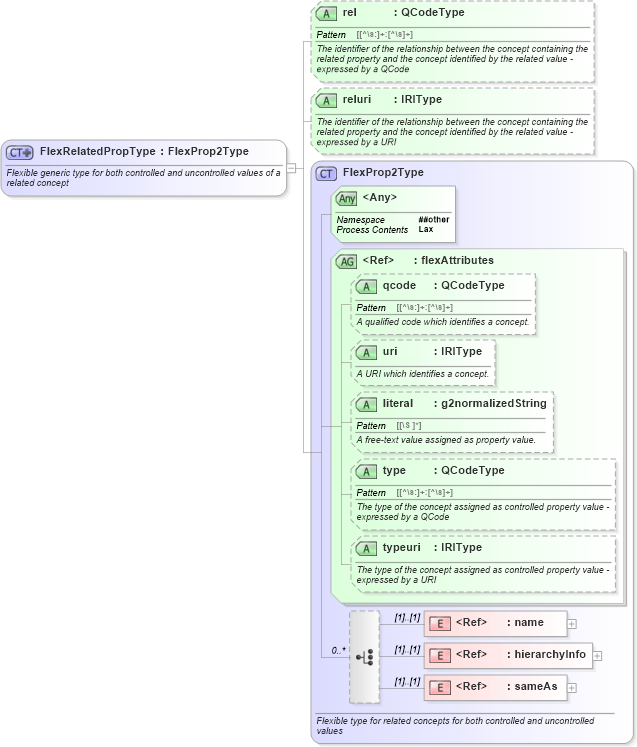

Collapse XSD Schema Diagram:
Drilldown into sameAs in schema newsml-g2_2_23-spec-all-core_xsd Drilldown into hierarchyInfo in schema newsml-g2_2_23-spec-all-core_xsd Drilldown into name in schema newsml-g2_2_23-spec-all-core_xsd Drilldown into typeuri in schema newsml-g2_2_23-spec-all-core_xsd Drilldown into type in schema newsml-g2_2_23-spec-all-core_xsd Drilldown into literal in schema newsml-g2_2_23-spec-all-core_xsd Drilldown into uri in schema newsml-g2_2_23-spec-all-core_xsd Drilldown into qcode in schema newsml-g2_2_23-spec-all-core_xsd Drilldown into flexAttributes in schema newsml-g2_2_23-spec-all-core_xsd Drilldown into FlexProp2Type in schema newsml-g2_2_23-spec-all-core_xsd Drilldown into reluri in schema newsml-g2_2_23-spec-all-core_xsd Drilldown into rel in schema newsml-g2_2_23-spec-all-core_xsdXSD Diagram of FlexRelatedPropType in schema newsml-g2_2_23-spec-all-core_xsd (News Markup Language (NewsML) - Core)
Collapse XSD Schema Code:
<xs:complexType name="FlexRelatedPropType">
    <xs:annotation>
        <xs:documentation>Flexible generic type for both controlled and uncontrolled values of a related concept</xs:documentation>
    </xs:annotation>
    <xs:complexContent>
        <xs:extension base="FlexProp2Type">
            <xs:attribute name="rel" type="QCodeType" use="optional">
                <xs:annotation>
                    <xs:documentation>The identifier of the relationship between the concept containing the related property and the concept identified by the related value - expressed by a QCode</xs:documentation>
                </xs:annotation>
            </xs:attribute>
            <xs:attribute name="reluri" type="IRIType" use="optional">
                <xs:annotation>
                    <xs:documentation>The identifier of the relationship between the concept containing the related property and the concept identified by the related value - expressed by a URI</xs:documentation>
                </xs:annotation>
            </xs:attribute>
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
name nsB:name (1) (1)
hierarchyInfo nsB:hierarchyInfo (1) (1)
sameAs nsB:sameAs (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
qcode nsB:qcode Optional
uri nsB:uri Optional
literal nsB:literal Optional
type nsB:type Optional
typeuri nsB:typeuri Optional
rel nsB:rel Optional
reluri nsB:reluri Optional
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
Collapse References:
nsB:related
