Definition Type: Element
Name: hop
Namespace: http://iptc.org/std/nar/2006-10-01/
Containing Schema: NewsML-G2_2.23-spec-All-Core.xsd
MinOccurs (1)
MaxOccurs unbounded
Abstract
Documentation:
A single hop of the Hop History. The details of the hop entry should reflect the actions taken by a party.

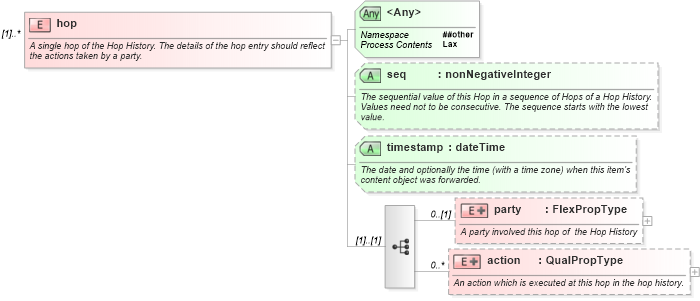

Collapse XSD Schema Diagram:
Drilldown into action in schema newsml-g2_2_23-spec-all-core_xsd Drilldown into party in schema newsml-g2_2_23-spec-all-core_xsd Drilldown into timestamp in schema newsml-g2_2_23-spec-all-core_xsd Drilldown into seq in schema newsml-g2_2_23-spec-all-core_xsdXSD Diagram of hop in schema newsml-g2_2_23-spec-all-core_xsd (News Markup Language (NewsML) - Core)
Collapse XSD Schema Code:
<xs:element name="hop" maxOccurs="unbounded">
    <xs:annotation>
        <xs:documentation>A single hop of the Hop History. The details of the hop entry should reflect the actions taken by a party.</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:sequence>
            <xs:element name="party" minOccurs="0">
                <xs:annotation>
                    <xs:documentation>A party involved this hop of  the Hop History</xs:documentation>
                </xs:annotation>
                <xs:complexType>
                    <xs:complexContent>
                        <xs:extension base="FlexPropType" />
                    </xs:complexContent>
                </xs:complexType>
            </xs:element>
            <xs:element name="action" minOccurs="0" maxOccurs="unbounded">
                <xs:annotation>
                    <xs:documentation>An action which is executed at this hop in the hop history.</xs:documentation>
                </xs:annotation>
                <xs:complexType>
                    <xs:complexContent>
                        <xs:extension base="QualPropType">
                            <xs:attribute name="target" type="QCodeType">
                                <xs:annotation>
                                    <xs:documentation>The target of the action in a content object - expressed by a QCode. If the target attribute is omitted the target of the action is the whole object.</xs:documentation>
                                </xs:annotation>
                            </xs:attribute>
                            <xs:attribute name="targeturi" type="IRIType">
                                <xs:annotation>
                                    <xs:documentation>The target of the action in a content object - expressed by a URI. If the target attribute is omitted the target of the action is the whole object.</xs:documentation>
                                </xs:annotation>
                            </xs:attribute>
                            <xs:attribute name="timestamp" type="xs:dateTime">
                                <xs:annotation>
                                    <xs:documentation>The date and optionally the time (with a time zone) when this action was performed on the target.</xs:documentation>
                                </xs:annotation>
                            </xs:attribute>
                        </xs:extension>
                    </xs:complexContent>
                </xs:complexType>
            </xs:element>
        </xs:sequence>
        <xs:attribute name="seq" type="xs:nonNegativeInteger">
            <xs:annotation>
                <xs:documentation>The sequential value of this Hop in a sequence of Hops of a Hop History. Values need not to be consecutive. The sequence starts with the lowest value.</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attribute name="timestamp" type="xs:dateTime">
            <xs:annotation>
                <xs:documentation>The date and optionally the time (with a time zone) when this item's content object was forwarded.</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:anyAttribute namespace="##other" processContents="lax" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
party nsB:party 0 (1)
action nsB:action 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
seq nsB:seq (Optional)
timestamp nsB:timestamp (Optional)
<anyAttribute> Allowed namespace: '##other'
