Documentation for News Markup Language (NewsML) - Core
Definition Type: ComplexType
Name: LabelType
Namespace: http://iptc.org/std/nar/2006-10-01/
Type: nsB:IntlStringType
Containing Schema: NewsML-G2_2.23-spec-All-Core.xsd
Abstract
Documentation:
The CCL-type for information about the content as natural language string with minimal markup

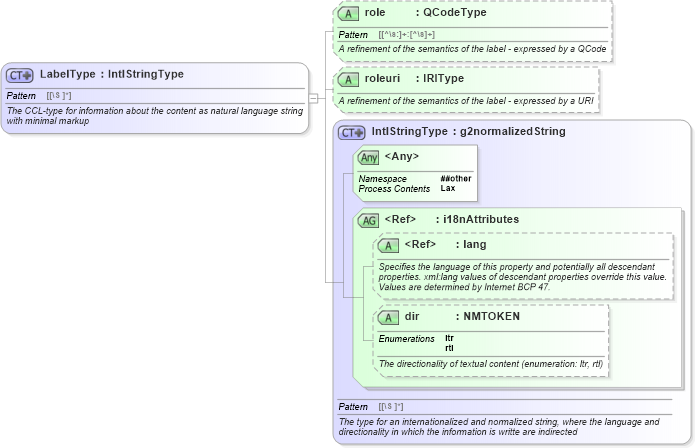

Collapse XSD Schema Diagram:
Drilldown into dir in schema newsml-g2_2_23-spec-all-core_xsd Drilldown into lang in schema xml_xsd Drilldown into i18nAttributes in schema newsml-g2_2_23-spec-all-core_xsd Drilldown into IntlStringType in schema newsml-g2_2_23-spec-all-core_xsd Drilldown into roleuri in schema newsml-g2_2_23-spec-all-core_xsd Drilldown into role in schema newsml-g2_2_23-spec-all-core_xsdXSD Diagram of LabelType in schema newsml-g2_2_23-spec-all-core_xsd (News Markup Language (NewsML) - Core)
Collapse XSD Schema Code:
<xs:complexType name="LabelType">
    <xs:annotation>
        <xs:documentation>The CCL-type for information about the content as natural language string with minimal markup</xs:documentation>
    </xs:annotation>
    <xs:simpleContent>
        <xs:extension base="IntlStringType">
            <xs:attribute name="role" type="QCodeType" use="optional">
                <xs:annotation>
                    <xs:documentation>A refinement of the semantics of the label - expressed by a QCode</xs:documentation>
                </xs:annotation>
            </xs:attribute>
            <xs:attribute name="roleuri" type="IRIType" use="optional">
                <xs:annotation>
                    <xs:documentation>A refinement of the semantics of the label - expressed by a URI</xs:documentation>
                </xs:annotation>
            </xs:attribute>
        </xs:extension>
    </xs:simpleContent>
</xs:complexType>
Collapse Child Attributes:
Name Type Default Value Use
lang nsA:lang Optional
dir nsB:dir Optional
role nsB:role Optional
roleuri nsB:roleuri Optional
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
Collapse References:
nsB:by, nsB:capacity, nsB:dateline, nsB:headline, nsB:openHours, nsB:title
