Definition Type: Element
Name: line
Namespace: http://iptc.org/std/nar/2006-10-01/
Type: nsB:IntlStringType
Containing Schema: NewsML-G2_2.23-spec-All-Core.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
A line of address information, in the format expected by a recipient postal service. City, country area, country and postal code are expressed separately.

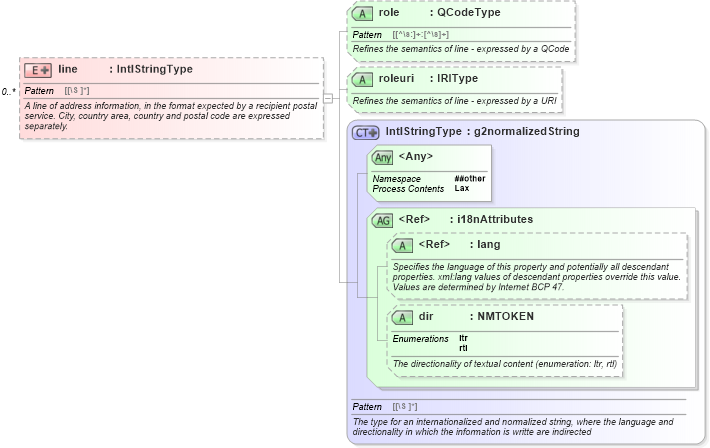

Collapse XSD Schema Diagram:
Drilldown into dir in schema newsml-g2_2_23-spec-all-core_xsd Drilldown into lang in schema xml_xsd Drilldown into i18nAttributes in schema newsml-g2_2_23-spec-all-core_xsd Drilldown into IntlStringType in schema newsml-g2_2_23-spec-all-core_xsd Drilldown into roleuri in schema newsml-g2_2_23-spec-all-core_xsd Drilldown into role in schema newsml-g2_2_23-spec-all-core_xsdXSD Diagram of line in schema newsml-g2_2_23-spec-all-core_xsd (News Markup Language (NewsML) - Core)
Collapse XSD Schema Code:
<xs:element name="line" minOccurs="0" maxOccurs="unbounded">
    <xs:annotation>
        <xs:documentation>A line of address information, in the format expected by a recipient postal service. City, country area, country and postal code are expressed separately.</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:complexContent>
            <xs:extension base="IntlStringType">
                <xs:attribute name="role" type="QCodeType">
                    <xs:annotation>
                        <xs:documentation>Refines the semantics of line - expressed by a QCode</xs:documentation>
                    </xs:annotation>
                </xs:attribute>
                <xs:attribute name="roleuri" type="IRIType">
                    <xs:annotation>
                        <xs:documentation>Refines the semantics of line - expressed by a URI</xs:documentation>
                    </xs:annotation>
                </xs:attribute>
            </xs:extension>
        </xs:complexContent>
    </xs:complexType>
</xs:element>
Collapse Child Attributes:
Name Type Default Value Use
lang nsA:lang Optional
dir nsB:dir Optional
role nsB:role (Optional)
roleuri nsB:roleuri (Optional)
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
