Definition Type: Element
Name: planning
Namespace: http://iptc.org/std/nar/2006-10-01/
Containing Schema: NewsML-G2_2.23-spec-All-Core.xsd
MinOccurs (1)
MaxOccurs unbounded
Abstract
Documentation:
Details about the planned news coverage by a specific kind of G2 item.

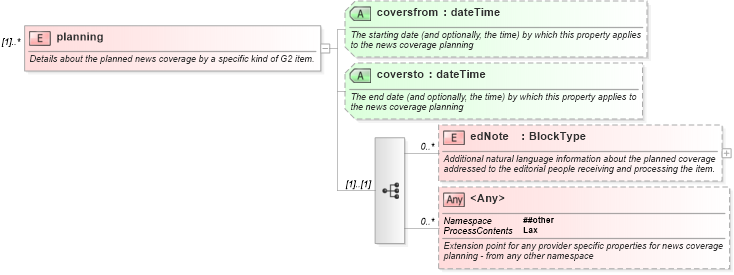

Collapse XSD Schema Diagram:
Drilldown into edNote in schema newsml-g2_2_23-spec-all-core_xsd Drilldown into coversto in schema newsml-g2_2_23-spec-all-core_xsd Drilldown into coversfrom in schema newsml-g2_2_23-spec-all-core_xsdXSD Diagram of planning in schema newsml-g2_2_23-spec-all-core_xsd (News Markup Language (NewsML) - Core)
Collapse XSD Schema Code:
<xs:element name="planning" maxOccurs="unbounded">
    <xs:annotation>
        <xs:documentation>Details about the planned news coverage by a specific kind of G2 item.</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:sequence>
            <xs:element name="edNote" type="BlockType" minOccurs="0" maxOccurs="unbounded">
                <xs:annotation>
                    <xs:documentation>Additional natural language information about the planned coverage addressed to the editorial people receiving and processing the item.</xs:documentation>
                </xs:annotation>
            </xs:element>
            <xs:any namespace="##other" processContents="lax" minOccurs="0" maxOccurs="unbounded">
                <xs:annotation>
                    <xs:documentation>Extension point for any provider specific properties for news coverage planning - from any other namespace</xs:documentation>
                </xs:annotation>
            </xs:any>
        </xs:sequence>
        <xs:attribute name="coversfrom" type="xs:dateTime">
            <xs:annotation>
                <xs:documentation>The starting date (and optionally, the time) by which this property applies to the news coverage planning</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attribute name="coversto" type="xs:dateTime">
            <xs:annotation>
                <xs:documentation>The end date (and optionally, the time) by which this property applies to the news coverage planning</xs:documentation>
            </xs:annotation>
        </xs:attribute>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
edNote nsB:edNote 0 unbounded
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
coversfrom nsB:coversfrom (Optional)
coversto nsB:coversto (Optional)
