Definition Type: Element
Name: schemeMeta
Namespace: http://iptc.org/std/nar/2006-10-01/
Containing Schema: NewsML-G2_2.23-spec-All-Core.xsd
Abstract
Documentation:
Metadata about a scheme conveyed by a Knowledge Item

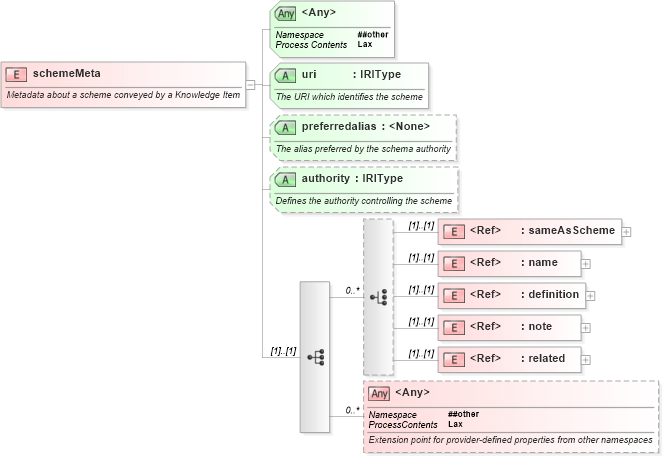

Collapse XSD Schema Diagram:
Drilldown into related in schema newsml-g2_2_23-spec-all-core_xsd Drilldown into note in schema newsml-g2_2_23-spec-all-core_xsd Drilldown into definition in schema newsml-g2_2_23-spec-all-core_xsd Drilldown into name in schema newsml-g2_2_23-spec-all-core_xsd Drilldown into sameAsScheme in schema newsml-g2_2_23-spec-all-core_xsd Drilldown into authority in schema newsml-g2_2_23-spec-all-core_xsd Drilldown into preferredalias in schema newsml-g2_2_23-spec-all-core_xsd Drilldown into uri in schema newsml-g2_2_23-spec-all-core_xsdXSD Diagram of schemeMeta in schema newsml-g2_2_23-spec-all-core_xsd (News Markup Language (NewsML) - Core)
Collapse XSD Schema Code:
<xs:element name="schemeMeta">
    <xs:annotation>
        <xs:documentation>Metadata about a scheme conveyed by a Knowledge Item</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:sequence>
            <xs:choice minOccurs="0" maxOccurs="unbounded">
                <xs:element ref="sameAsScheme" />
                <xs:element ref="name" />
                <xs:element ref="definition" />
                <xs:element ref="note" />
                <xs:element ref="related" />
            </xs:choice>
            <xs:any namespace="##other" processContents="lax" minOccurs="0" maxOccurs="unbounded">
                <xs:annotation>
                    <xs:documentation>Extension point for provider-defined properties from other namespaces</xs:documentation>
                </xs:annotation>
            </xs:any>
        </xs:sequence>
        <xs:attribute name="uri" type="IRIType" use="required">
            <xs:annotation>
                <xs:documentation>The URI which identifies the scheme</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attribute name="preferredalias">
            <xs:annotation>
                <xs:documentation>The alias preferred by the schema authority</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attribute name="authority" type="IRIType">
            <xs:annotation>
                <xs:documentation>Defines the authority controlling the scheme </xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:anyAttribute namespace="##other" processContents="lax" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
sameAsScheme nsB:sameAsScheme (1) (1)
name nsB:name (1) (1)
definition nsB:definition (1) (1)
note nsB:note (1) (1)
related nsB:related (1) (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
uri nsB:uri Required
preferredalias nsB:preferredalias (Optional)
authority nsB:authority (Optional)
<anyAttribute> Allowed namespace: '##other'
