Documentation for News Markup Language (NewsML) - Power
Definition Type: Element
Name: derivedFrom
Namespace: http://iptc.org/std/nar/2006-10-01/
Type: nsB:Flex1PropType
Containing Schema: NewsML-G2_2.20-spec-All-Power.xsd
Abstract
Documentation:
Represents a concept which was used for deriving the value of a property in this G2 item

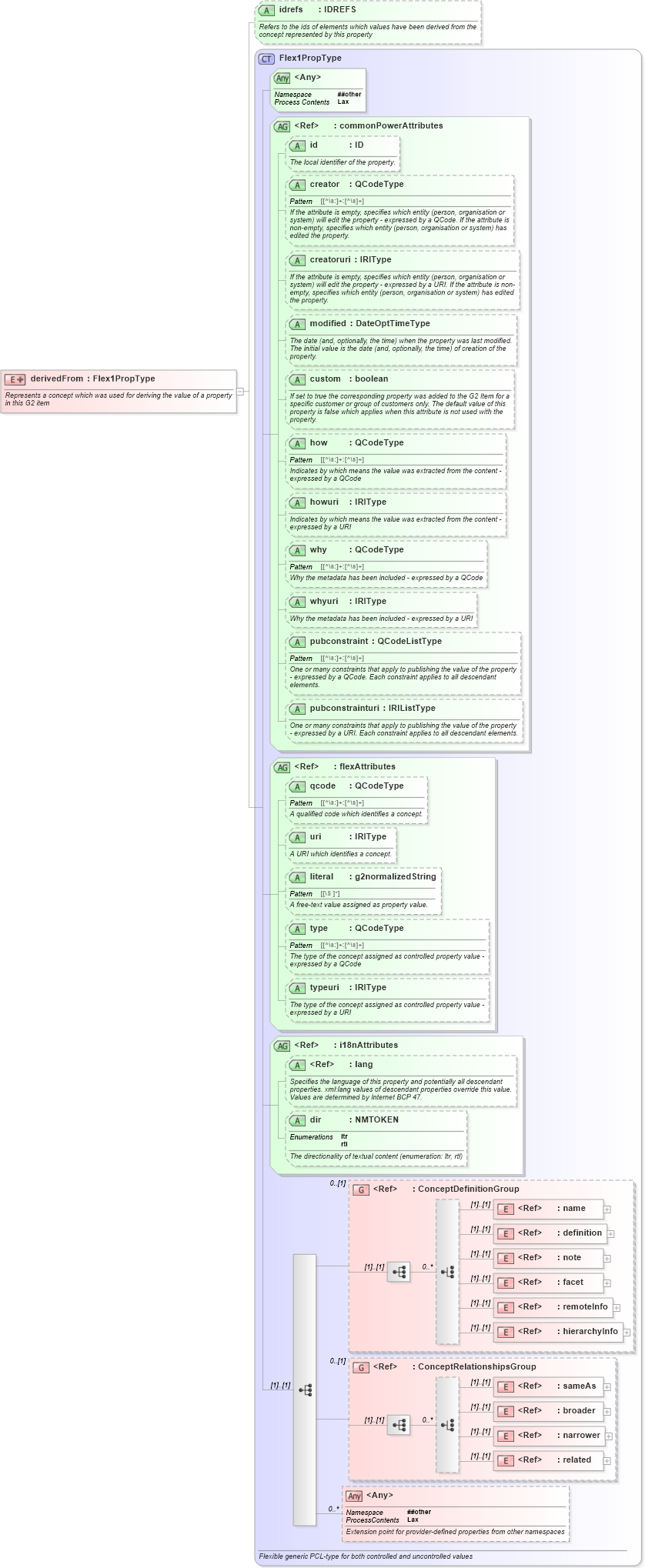

Collapse XSD Schema Diagram:
Drilldown into related in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into narrower in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into broader in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into sameAs in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into ConceptRelationshipsGroup in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into hierarchyInfo in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into remoteInfo in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into facet in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into note in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into definition in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into name in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into ConceptDefinitionGroup in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into dir in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into lang in schema xml_xsd Drilldown into i18nAttributes in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into typeuri in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into type in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into literal in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into uri in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into qcode in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into flexAttributes in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into pubconstrainturi in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into pubconstraint in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into whyuri in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into why in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into howuri in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into how in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into custom in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into modified in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into creatoruri in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into creator in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into id in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into commonPowerAttributes in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into Flex1PropType in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into idrefs in schema newsml-g2_2_20-spec-all-power_xsdXSD Diagram of derivedFrom in schema newsml-g2_2_20-spec-all-power_xsd (News Markup Language (NewsML) - Power)
Collapse XSD Schema Code:
<xs:element name="derivedFrom">
    <xs:annotation>
        <xs:documentation>Represents a concept which was used for deriving the value of a property in this G2 item</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:complexContent>
            <xs:extension base="Flex1PropType">
                <xs:attribute name="idrefs" type="xs:IDREFS">
                    <xs:annotation>
                        <xs:documentation>Refers to the ids of elements which values have been derived from the concept represented by this property</xs:documentation>
                    </xs:annotation>
                </xs:attribute>
            </xs:extension>
        </xs:complexContent>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
name nsB:name (1) (1)
definition nsB:definition (1) (1)
note nsB:note (1) (1)
facet nsB:facet (1) (1)
remoteInfo nsB:remoteInfo (1) (1)
hierarchyInfo nsB:hierarchyInfo (1) (1)
sameAs nsB:sameAs (1) (1)
broader nsB:broader (1) (1)
narrower nsB:narrower (1) (1)
related nsB:related (1) (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
<xs:group> nsB:ConceptDefinitionGroup 0 (1)
<xs:group> nsB:ConceptRelationshipsGroup 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsB:id Optional
creator nsB:creator Optional
creatoruri nsB:creatoruri Optional
modified nsB:modified Optional
custom nsB:custom Optional
how nsB:how Optional
howuri nsB:howuri Optional
why nsB:why Optional
whyuri nsB:whyuri Optional
pubconstraint nsB:pubconstraint Optional
pubconstrainturi nsB:pubconstrainturi Optional
qcode nsB:qcode Optional
uri nsB:uri Optional
literal nsB:literal Optional
type nsB:type Optional
typeuri nsB:typeuri Optional
lang nsA:lang Optional
dir nsB:dir Optional
idrefs nsB:idrefs (Optional)
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
