Documentation for News Markup Language (NewsML) - Power
Definition Type: Group
Name: ItemManagementGroup
Namespace: http://iptc.org/std/nar/2006-10-01/
Containing Schema: NewsML-G2_2.20-spec-All-Power.xsd
Documentation:
A group of properties for the management of the item

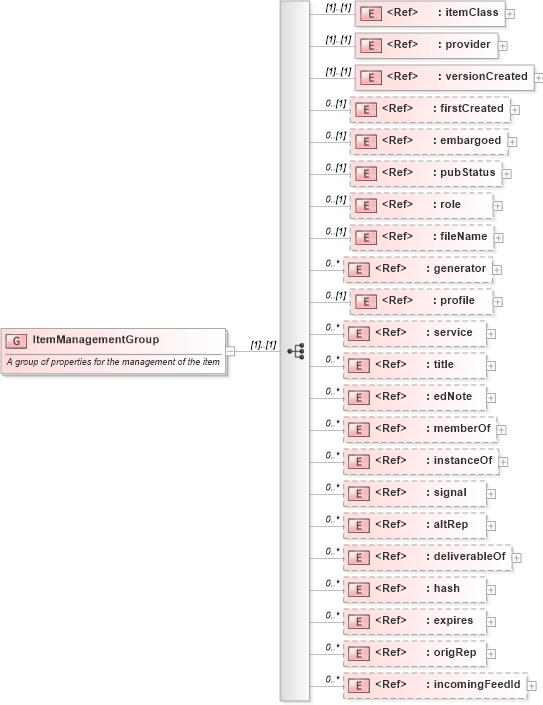

Collapse XSD Schema Diagram:
Drilldown into incomingFeedId in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into origRep in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into expires in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into hash in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into deliverableOf in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into altRep in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into signal in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into instanceOf in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into memberOf in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into edNote in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into title in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into service in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into profile in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into generator in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into fileName in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into role in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into pubStatus in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into embargoed in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into firstCreated in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into versionCreated in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into provider in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into itemClass in schema newsml-g2_2_20-spec-all-power_xsdXSD Diagram of ItemManagementGroup in schema newsml-g2_2_20-spec-all-power_xsd (News Markup Language (NewsML) - Power)
Collapse XSD Schema Code:
<xs:group name="ItemManagementGroup">
    <xs:annotation>
        <xs:documentation>A group of properties for the management of the item</xs:documentation>
    </xs:annotation>
    <xs:sequence>
        <xs:element ref="itemClass" />
        <xs:element ref="provider" />
        <xs:element ref="versionCreated" />
        <xs:element ref="firstCreated" minOccurs="0" />
        <xs:element ref="embargoed" minOccurs="0" />
        <xs:element ref="pubStatus" minOccurs="0" />
        <xs:element ref="role" minOccurs="0" />
        <xs:element ref="fileName" minOccurs="0" />
        <xs:element ref="generator" minOccurs="0" maxOccurs="unbounded" />
        <xs:element ref="profile" minOccurs="0" />
        <xs:element ref="service" minOccurs="0" maxOccurs="unbounded" />
        <xs:element ref="title" minOccurs="0" maxOccurs="unbounded">
            <xs:annotation>
                <xs:documentation>A short natural language name for the Item.</xs:documentation>
            </xs:annotation>
        </xs:element>
        <xs:element ref="edNote" minOccurs="0" maxOccurs="unbounded" />
        <xs:element ref="memberOf" minOccurs="0" maxOccurs="unbounded" />
        <xs:element ref="instanceOf" minOccurs="0" maxOccurs="unbounded" />
        <xs:element ref="signal" minOccurs="0" maxOccurs="unbounded" />
        <xs:element ref="altRep" minOccurs="0" maxOccurs="unbounded" />
        <xs:element ref="deliverableOf" minOccurs="0" maxOccurs="unbounded" />
        <xs:element ref="hash" minOccurs="0" maxOccurs="unbounded" />
        <xs:element ref="expires" minOccurs="0" maxOccurs="unbounded" />
        <xs:element ref="origRep" minOccurs="0" maxOccurs="unbounded" />
        <xs:element ref="incomingFeedId" minOccurs="0" maxOccurs="unbounded" />
    </xs:sequence>
</xs:group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
itemClass nsB:itemClass (1) (1)
provider nsB:provider (1) (1)
versionCreated nsB:versionCreated (1) (1)
firstCreated nsB:firstCreated 0 (1)
embargoed nsB:embargoed 0 (1)
pubStatus nsB:pubStatus 0 (1)
role nsB:role 0 (1)
fileName nsB:fileName 0 (1)
generator nsB:generator 0 unbounded
profile nsB:profile 0 (1)
service nsB:service 0 unbounded
title nsB:title 0 unbounded
edNote nsB:edNote 0 unbounded
memberOf nsB:memberOf 0 unbounded
instanceOf nsB:instanceOf 0 unbounded
signal nsB:signal 0 unbounded
altRep nsB:altRep 0 unbounded
deliverableOf nsB:deliverableOf 0 unbounded
hash nsB:hash 0 unbounded
expires nsB:expires 0 unbounded
origRep nsB:origRep 0 unbounded
incomingFeedId nsB:incomingFeedId 0 unbounded
