Documentation for News Markup Language (NewsML) - Power
Definition Type: ComplexType
Name: QualPropType
Namespace: http://iptc.org/std/nar/2006-10-01/
Type: nsB:QCodePropType
Containing Schema: NewsML-G2_2.20-spec-All-Power.xsd
Abstract
Documentation:
Type type for a property with a QCode value in a qcode attribute and optional names

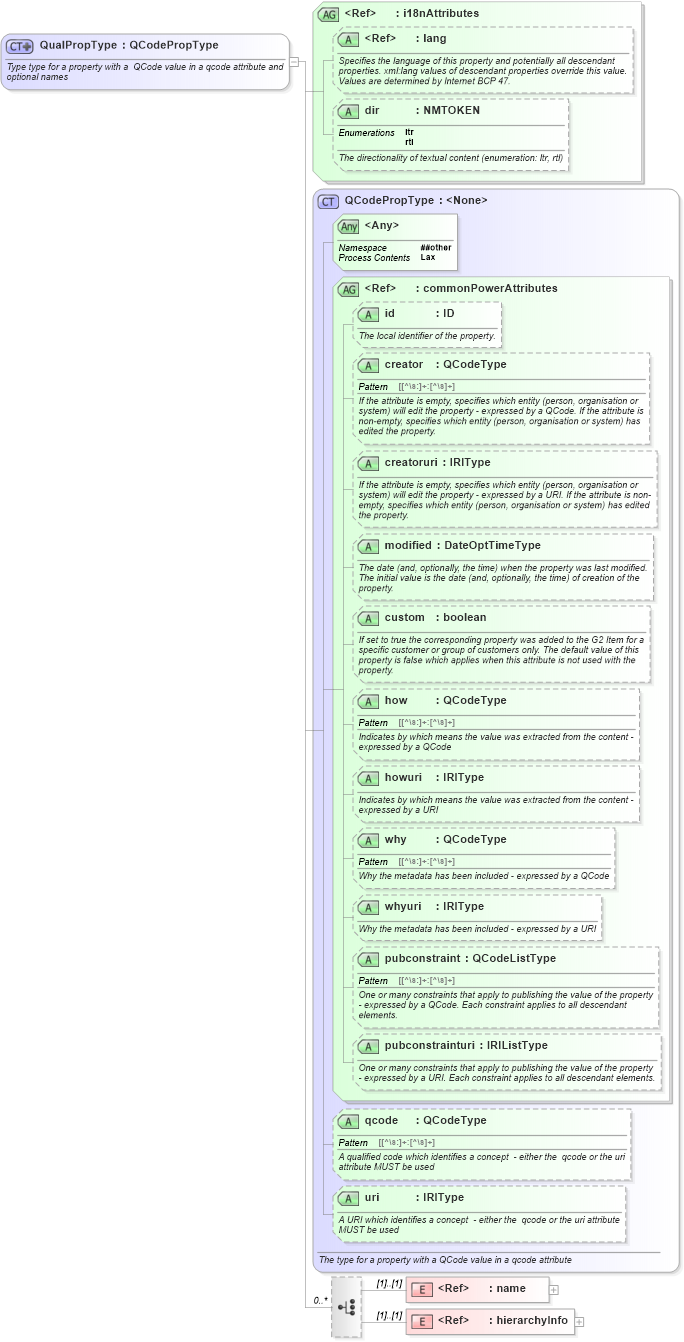

Collapse XSD Schema Diagram:
Drilldown into hierarchyInfo in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into name in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into uri in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into qcode in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into pubconstrainturi in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into pubconstraint in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into whyuri in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into why in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into howuri in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into how in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into custom in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into modified in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into creatoruri in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into creator in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into id in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into commonPowerAttributes in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into QCodePropType in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into dir in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into lang in schema xml_xsd Drilldown into i18nAttributes in schema newsml-g2_2_20-spec-all-power_xsdXSD Diagram of QualPropType in schema newsml-g2_2_20-spec-all-power_xsd (News Markup Language (NewsML) - Power)
Collapse XSD Schema Code:
<xs:complexType name="QualPropType">
    <xs:annotation>
        <xs:documentation>Type type for a property with a  QCode value in a qcode attribute and optional names</xs:documentation>
    </xs:annotation>
    <xs:complexContent>
        <xs:extension base="QCodePropType">
            <xs:choice minOccurs="0" maxOccurs="unbounded">
                <!-- NAR1.1 rev3 : use newly defined global name -->
                <xs:element ref="name" />
                <xs:element ref="hierarchyInfo" />
            </xs:choice>
            <xs:attributeGroup ref="i18nAttributes" />
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
name nsB:name (1) (1)
hierarchyInfo nsB:hierarchyInfo (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsB:id Optional
creator nsB:creator Optional
creatoruri nsB:creatoruri Optional
modified nsB:modified Optional
custom nsB:custom Optional
how nsB:how Optional
howuri nsB:howuri Optional
why nsB:why Optional
whyuri nsB:whyuri Optional
pubconstraint nsB:pubconstraint Optional
pubconstrainturi nsB:pubconstrainturi Optional
qcode nsB:qcode (Optional)
uri nsB:uri Optional
lang nsA:lang Optional
dir nsB:dir Optional
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
Collapse References:
nsB:accessStatus, nsB:action, nsB:itemClass, nsB:newsCoverageStatus, nsB:occurStatus, nsB:pubStatus, nsB:role, nsB:role, nsB:service, nsB:service, nsB:service, nsB:signal, nsB:typensB:TypedQualPropType,
