Definition Type: Element
Name: ruby
Namespace: http://iptc.org/std/nar/2006-10-01/
Containing Schema: NewsML-G2_2.20-spec-All-Power.xsd
Abstract
Documentation:
Simple W3C Ruby Annotation - see http://www.w3.org/TR/ruby/#simple-ruby1

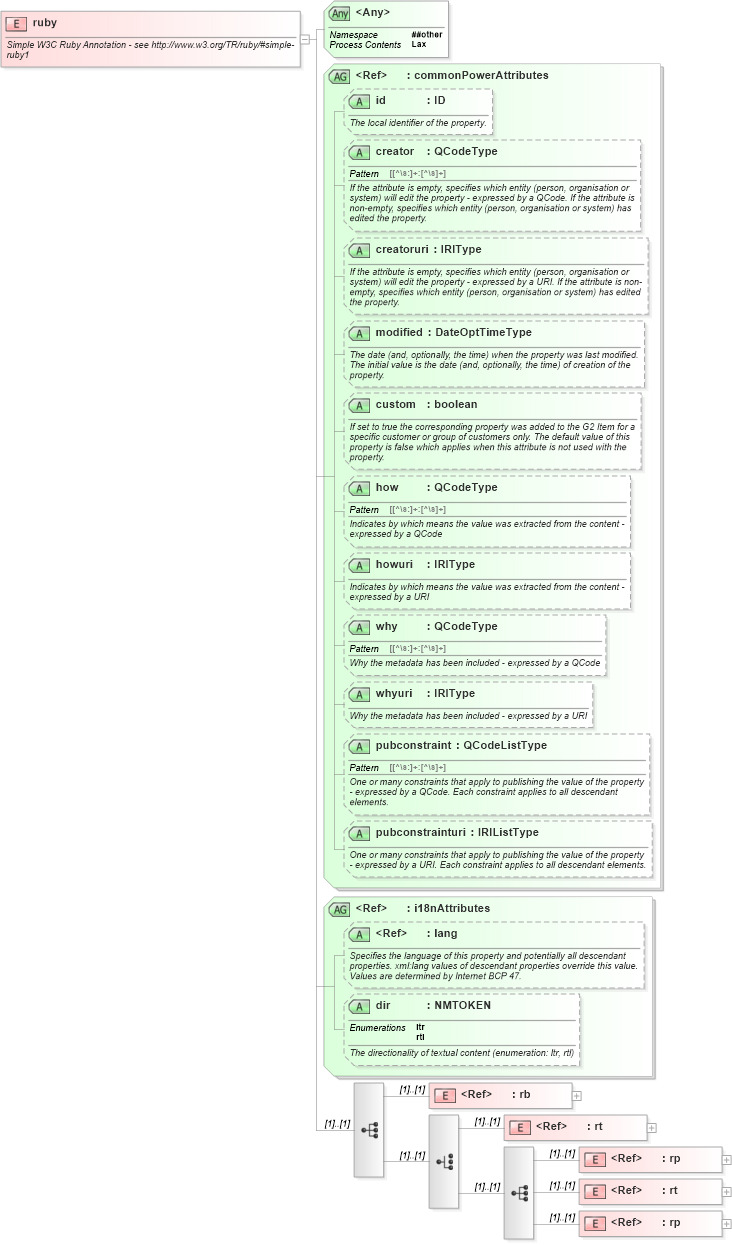

Collapse XSD Schema Diagram:
Drilldown into rp in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into rt in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into rp in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into rt in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into rb in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into dir in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into lang in schema xml_xsd Drilldown into i18nAttributes in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into pubconstrainturi in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into pubconstraint in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into whyuri in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into why in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into howuri in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into how in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into custom in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into modified in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into creatoruri in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into creator in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into id in schema newsml-g2_2_20-spec-all-power_xsd Drilldown into commonPowerAttributes in schema newsml-g2_2_20-spec-all-power_xsdXSD Diagram of ruby in schema newsml-g2_2_20-spec-all-power_xsd (News Markup Language (NewsML) - Power)
Collapse XSD Schema Code:
<xs:element name="ruby">
    <xs:annotation>
        <xs:documentation>Simple W3C Ruby Annotation - see http://www.w3.org/TR/ruby/#simple-ruby1</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:annotation>
            <xs:documentation>Simple W3C Ruby Annotation - see http://www.w3.org/TR/ruby/. </xs:documentation>
        </xs:annotation>
        <xs:sequence>
            <xs:element ref="rb" />
            <xs:choice>
                <xs:element ref="rt" />
                <xs:sequence>
                    <xs:element ref="rp" />
                    <xs:element ref="rt" />
                    <xs:element ref="rp" />
                </xs:sequence>
            </xs:choice>
        </xs:sequence>
        <xs:attributeGroup ref="commonPowerAttributes" />
        <xs:attributeGroup ref="i18nAttributes" />
        <xs:anyAttribute namespace="##other" processContents="lax" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
rb nsB:rb (1) (1)
rt nsB:rt (1) (1)
rp nsB:rp (1) (1)
rt nsB:rt (1) (1)
rp nsB:rp (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsB:id Optional
creator nsB:creator Optional
creatoruri nsB:creatoruri Optional
modified nsB:modified Optional
custom nsB:custom Optional
how nsB:how Optional
howuri nsB:howuri Optional
why nsB:why Optional
whyuri nsB:whyuri Optional
pubconstraint nsB:pubconstraint Optional
pubconstrainturi nsB:pubconstrainturi Optional
lang nsA:lang Optional
dir nsB:dir Optional
<anyAttribute> Allowed namespace: '##other'
