Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: CatalogLine
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:CatalogLineType
Containing Schema: Catalog.xsd
Abstract
Documentation:
Describes the items that are in the Catalog.

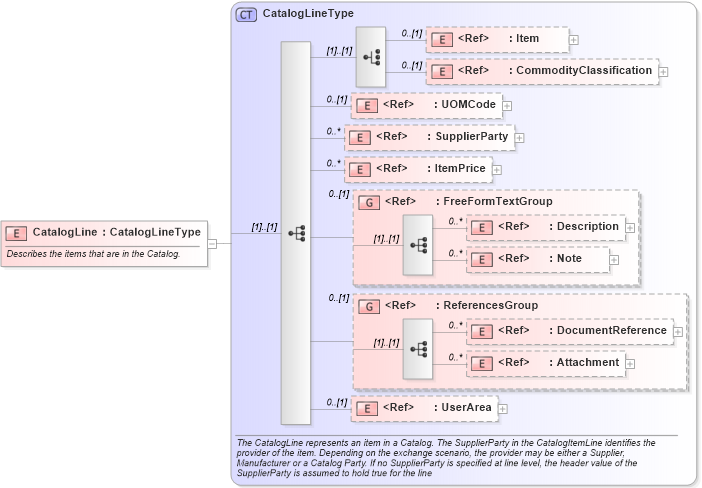

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into Attachment in schema components_xsd Drilldown into DocumentReference in schema components_xsd Drilldown into ReferencesGroup in schema components_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into ItemPrice in schema catalog_xsd Drilldown into SupplierParty in schema components_xsd Drilldown into UOMCode in schema fields_xsd Drilldown into CommodityClassification in schema components_xsd Drilldown into Item in schema components_xsd Drilldown into CatalogLineType in schema catalog_xsdXSD Diagram of CatalogLine in schema catalog_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="CatalogLine" type="CatalogLineType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">Describes the items that are in the Catalog.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Item nsA:Item 0 (1)
CommodityClassification nsA:CommodityClassification 0 (1)
UOMCode nsA:UOMCode 0 (1)
SupplierParty nsA:SupplierParty 0 unbounded
ItemPrice nsA:ItemPrice 0 unbounded
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
DocumentReference nsA:DocumentReference 0 unbounded
Attachment nsA:Attachment 0 unbounded
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:FreeFormTextGroup 0 (1)
<xs:group> nsA:ReferencesGroup 0 (1)
Collapse Derivation Tree:
