Definition Type: Element
Name: DataArea
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:NotifyDispatchListDataAreaType
Containing Schema: NotifyDispatchList.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
Is where the information that the BOD message carries is provided, in this case NotifyDispatchList. The information consists of a Verb and one or more Nouns. The verb (Notify) indicates the action to be performed on the Noun (DispatchList).

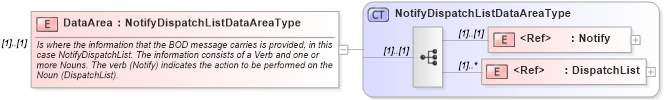

Collapse XSD Schema Diagram:
Drilldown into DispatchList in schema dispatchlist_xsd Drilldown into Notify in schema meta_xsd Drilldown into NotifyDispatchListDataAreaType in schema notifydispatchlist_xsdXSD Diagram of DataArea in schema notifydispatchlist_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="DataArea" type="NotifyDispatchListDataAreaType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">Is where the information that the BOD message carries is provided, in this case NotifyDispatchList. The information consists of a Verb and one or more Nouns. The verb (Notify) indicates the action to be performed on the Noun (DispatchList).</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Notify nsA:Notify (1) (1)
DispatchList nsA:DispatchList (1) unbounded
Collapse Derivation Tree:
