Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: DataArea
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:NotifyOperationDataAreaType
Containing Schema: NotifyOperation.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
Is where the information that the BOD message carries is provided, in this case NotifyOperation. The information consists of a Verb and one or more Nouns. The verb (Notify) indicates the action to be performed on the Noun (Operation).
Collapse XSD Schema Diagram:

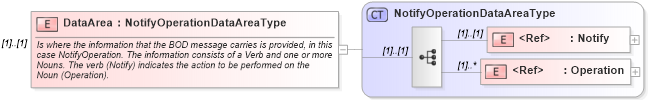

Drilldown into Operation in schema manufacturingcomponents_xsd Drilldown into Notify in schema meta_xsd Drilldown into NotifyOperationDataAreaType in schema notifyoperation_xsdXSD Diagram of DataArea in schema notifyoperation_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="DataArea" type="NotifyOperationDataAreaType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">Is where the information that the BOD message carries is provided, in this case NotifyOperation. The information consists of a Verb and one or more Nouns. The verb (Notify) indicates the action to be performed on the Noun (Operation).</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Notify nsA:Notify (1) (1)
Operation nsA:Operation (1) unbounded
Collapse Derivation Tree:
