Documentation for Open Applications Group (OAGIS)
Definition Type: ComplexType
Name: DocumentReferenceType
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:DocumentReferenceBaseType
Containing Schema: Components.xsd
Abstract

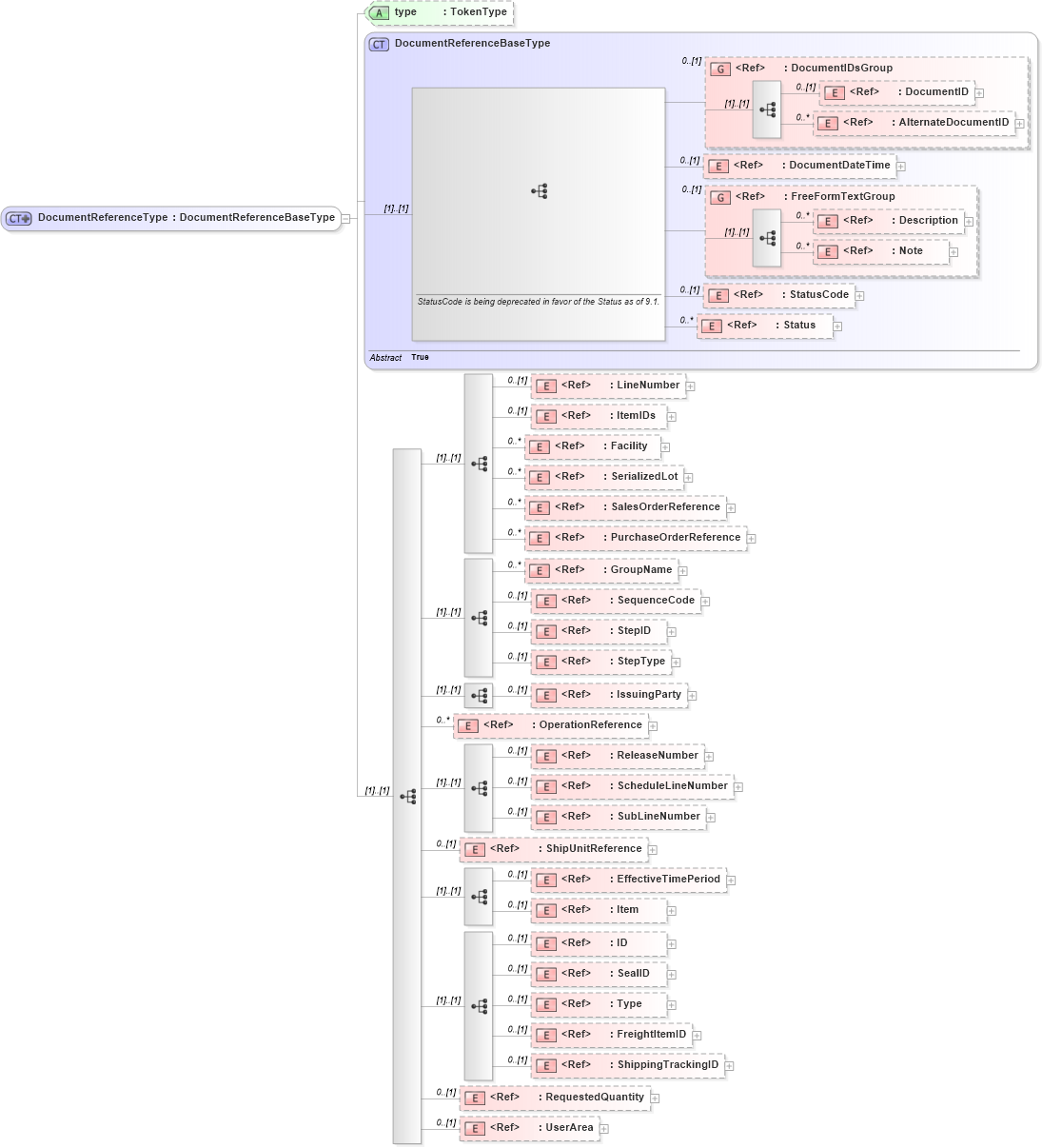

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into RequestedQuantity in schema fields_xsd Drilldown into ShippingTrackingID in schema fields_xsd Drilldown into FreightItemID in schema fields_xsd Drilldown into Type in schema fields_xsd Drilldown into SealID in schema fields_xsd Drilldown into ID in schema fields_xsd Drilldown into Item in schema components_xsd Drilldown into EffectiveTimePeriod in schema components_xsd Drilldown into ShipUnitReference in schema components_xsd Drilldown into SubLineNumber in schema fields_xsd Drilldown into ScheduleLineNumber in schema fields_xsd Drilldown into ReleaseNumber in schema fields_xsd Drilldown into OperationReference in schema components_xsd Drilldown into IssuingParty in schema components_xsd Drilldown into StepType in schema fields_xsd Drilldown into StepID in schema fields_xsd Drilldown into SequenceCode in schema fields_xsd Drilldown into GroupName in schema fields_xsd Drilldown into PurchaseOrderReference in schema components_xsd Drilldown into SalesOrderReference in schema components_xsd Drilldown into SerializedLot in schema components_xsd Drilldown into Facility in schema components_xsd Drilldown into ItemIDs in schema components_xsd Drilldown into LineNumber in schema fields_xsd Drilldown into Status in schema components_xsd Drilldown into StatusCode in schema fields_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into DocumentDateTime in schema fields_xsd Drilldown into AlternateDocumentID in schema components_xsd Drilldown into DocumentID in schema components_xsd Drilldown into DocumentIDsGroup in schema components_xsd Drilldown into DocumentReferenceBaseType in schema components_xsd Drilldown into type in schema components_xsdXSD Diagram of DocumentReferenceType in schema components_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="DocumentReferenceType">
    <xsd:complexContent>
        <xsd:extension base="DocumentReferenceBaseType">
            <xsd:sequence>
                <xsd:sequence>
                    <xsd:element ref="LineNumber" minOccurs="0" />
                    <xsd:element ref="ItemIDs" minOccurs="0" />
                    <xsd:element ref="Facility" minOccurs="0" maxOccurs="unbounded" />
                    <xsd:element ref="SerializedLot" minOccurs="0" maxOccurs="unbounded" />
                    <xsd:element ref="SalesOrderReference" minOccurs="0" maxOccurs="unbounded" />
                    <xsd:element ref="PurchaseOrderReference" minOccurs="0" maxOccurs="unbounded" />
                </xsd:sequence>
                <xsd:sequence>
                    <xsd:element ref="GroupName" minOccurs="0" maxOccurs="unbounded" />
                    <xsd:element ref="SequenceCode" minOccurs="0" />
                    <xsd:element ref="StepID" minOccurs="0" />
                    <xsd:element ref="StepType" minOccurs="0" />
                </xsd:sequence>
                <xsd:sequence>
                    <xsd:element ref="IssuingParty" minOccurs="0">
                        <xsd:annotation>
                            <xsd:documentation source="http://www.openapplications.org/oagis/9">Identifies the Party that issued the invoice</xsd:documentation>
                        </xsd:annotation>
                    </xsd:element>
                </xsd:sequence>
                <xsd:element ref="OperationReference" minOccurs="0" maxOccurs="unbounded" />
                <xsd:sequence>
                    <xsd:element ref="ReleaseNumber" minOccurs="0" />
                    <xsd:element ref="ScheduleLineNumber" minOccurs="0" />
                    <xsd:element ref="SubLineNumber" minOccurs="0" />
                </xsd:sequence>
                <xsd:element ref="ShipUnitReference" minOccurs="0" />
                <xsd:sequence>
                    <xsd:element ref="EffectiveTimePeriod" minOccurs="0" />
                    <xsd:element ref="Item" minOccurs="0" />
                </xsd:sequence>
                <xsd:sequence>
                    <xsd:element ref="ID" minOccurs="0" />
                    <xsd:element ref="SealID" minOccurs="0" />
                    <xsd:element ref="Type" minOccurs="0" />
                    <xsd:element ref="FreightItemID" minOccurs="0" />
                    <xsd:element ref="ShippingTrackingID" minOccurs="0" />
                </xsd:sequence>
                <xsd:element ref="RequestedQuantity" minOccurs="0" />
                <xsd:element ref="UserArea" minOccurs="0" />
            </xsd:sequence>
            <xsd:attribute name="type" type="TokenType" />
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentID nsA:DocumentID 0 (1)
AlternateDocumentID nsA:AlternateDocumentID 0 unbounded
DocumentDateTime nsA:DocumentDateTime 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
StatusCode nsA:StatusCode 0 (1)
Status nsA:Status 0 unbounded
LineNumber nsA:LineNumber 0 (1)
ItemIDs nsA:ItemIDs 0 (1)
Facility nsA:Facility 0 unbounded
SerializedLot nsA:SerializedLot 0 unbounded
SalesOrderReference nsA:SalesOrderReference 0 unbounded
PurchaseOrderReference nsA:PurchaseOrderReference 0 unbounded
GroupName nsA:GroupName 0 unbounded
SequenceCode nsA:SequenceCode 0 (1)
StepID nsA:StepID 0 (1)
StepType nsA:StepType 0 (1)
IssuingParty nsA:IssuingParty 0 (1)
OperationReference nsA:OperationReference 0 unbounded
ReleaseNumber nsA:ReleaseNumber 0 (1)
ScheduleLineNumber nsA:ScheduleLineNumber 0 (1)
SubLineNumber nsA:SubLineNumber 0 (1)
ShipUnitReference nsA:ShipUnitReference 0 (1)
EffectiveTimePeriod nsA:EffectiveTimePeriod 0 (1)
Item nsA:Item 0 (1)
ID nsA:ID 0 (1)
SealID nsA:SealID 0 (1)
Type nsA:Type 0 (1)
FreightItemID nsA:FreightItemID 0 (1)
ShippingTrackingID nsA:ShippingTrackingID 0 (1)
RequestedQuantity nsA:RequestedQuantity 0 (1)
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:DocumentIDsGroup 0 (1)
<xs:group> nsA:FreeFormTextGroup 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
type nsA:type (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:BillOfLadingReference, nsA:CatalogReference, nsA:DemandReference, nsA:DocumentReference, nsA:LastDeliveryReference, nsA:RespondingScheduleReferencensA:SourceDocumentReference,
