Documentation for Open Applications Group (OAGIS)
Definition Type: ComplexType
Name: ManufacturingPersonnelType
Namespace: http://www.openapplications.org/oagis/9
Containing Schema: ManufacturingComponents.xsd
Abstract

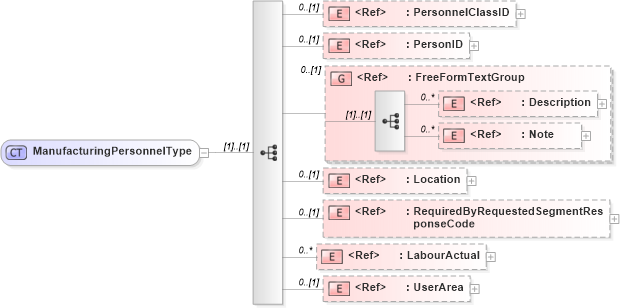

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into LabourActual in schema manufacturingcomponents_xsd Drilldown into RequiredByRequestedSegmentResponseCode in schema fields_xsd Drilldown into Location in schema components_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into PersonID in schema fields_xsd Drilldown into PersonnelClassID in schema fields_xsdXSD Diagram of ManufacturingPersonnelType in schema manufacturingcomponents_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="ManufacturingPersonnelType">
    <xsd:sequence>
        <xsd:element ref="PersonnelClassID" minOccurs="0" />
        <xsd:element ref="PersonID" minOccurs="0" />
        <xsd:group ref="FreeFormTextGroup" minOccurs="0" />
        <xsd:element ref="Location" minOccurs="0" />
        <xsd:element ref="RequiredByRequestedSegmentResponseCode" minOccurs="0" />
        <xsd:element ref="LabourActual" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PersonnelClassID nsA:PersonnelClassID 0 (1)
PersonID nsA:PersonID 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
Location nsA:Location 0 (1)
RequiredByRequestedSegmentResponseCode nsA:RequiredByRequestedSegmentResponseCode 0 (1)
LabourActual nsA:LabourActual 0 unbounded
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:FreeFormTextGroup 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:ManufacturingPersonnel, nsA:PersonnelActualnsA:PersonnelRequirement,
