Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: MergeWIPHeader
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:WIPEventHeaderType
Containing Schema: MergeWIP.xsd
Abstract
Documentation:
Provides information about the merge event.

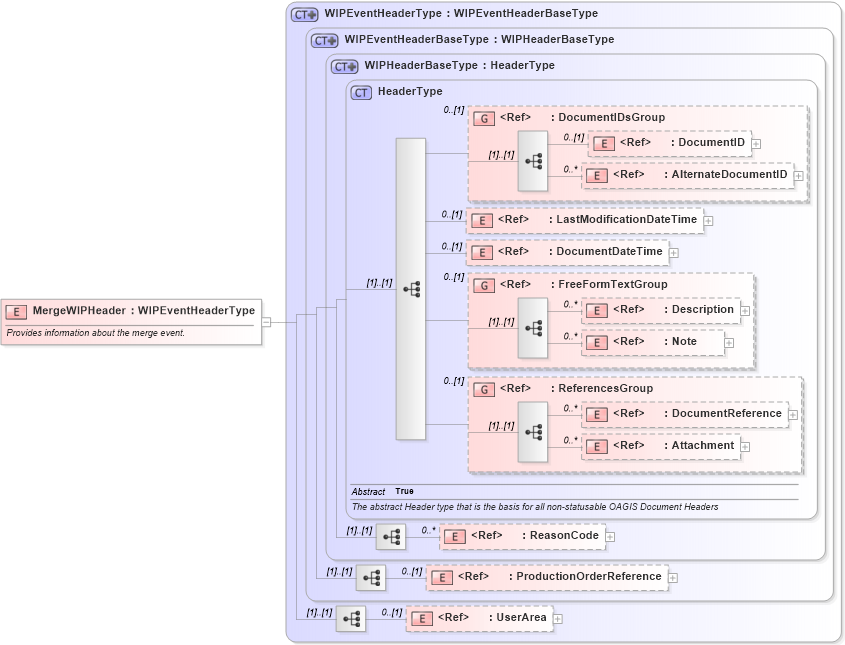

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into ProductionOrderReference in schema components_xsd Drilldown into ReasonCode in schema fields_xsd Drilldown into Attachment in schema components_xsd Drilldown into DocumentReference in schema components_xsd Drilldown into ReferencesGroup in schema components_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into DocumentDateTime in schema fields_xsd Drilldown into LastModificationDateTime in schema fields_xsd Drilldown into AlternateDocumentID in schema components_xsd Drilldown into DocumentID in schema components_xsd Drilldown into DocumentIDsGroup in schema components_xsd Drilldown into HeaderType in schema components_xsd Drilldown into WIPHeaderBaseType in schema manufacturingcomponents_xsd Drilldown into WIPEventHeaderBaseType in schema manufacturingcomponents_xsd Drilldown into WIPEventHeaderType in schema manufacturingcomponents_xsdXSD Diagram of MergeWIPHeader in schema mergewip_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="MergeWIPHeader" type="WIPEventHeaderType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">Provides information about the merge event.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentID nsA:DocumentID 0 (1)
AlternateDocumentID nsA:AlternateDocumentID 0 unbounded
LastModificationDateTime nsA:LastModificationDateTime 0 (1)
DocumentDateTime nsA:DocumentDateTime 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
DocumentReference nsA:DocumentReference 0 unbounded
Attachment nsA:Attachment 0 unbounded
ReasonCode nsA:ReasonCode 0 unbounded
ProductionOrderReference nsA:ProductionOrderReference 0 (1)
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:DocumentIDsGroup 0 (1)
<xs:group> nsA:FreeFormTextGroup 0 (1)
<xs:group> nsA:ReferencesGroup 0 (1)
Collapse Derivation Tree:
