Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: NotifyBOM
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:NotifyBOMType
Containing Schema: NotifyBOM.xsd
Abstract
Documentation:
The purpose of the NotifyBOM is to communicate to a business application module or system the need to initiate the creation of a Bill of Material structure. This BOD may be necessary to address the Make to Order, Assemble to Order, or Mixed Mode business ordering scenarios in a Order Management to Manufacturing application integration scenario. There are many possible business applications in several environments that may usethis capability. For example, an MRP, Inventory, or Manufacturing business application could use this to communicate the requirement of a Bill of Material. This information is provided as information it is up to the receiving system to determine what to do with it.

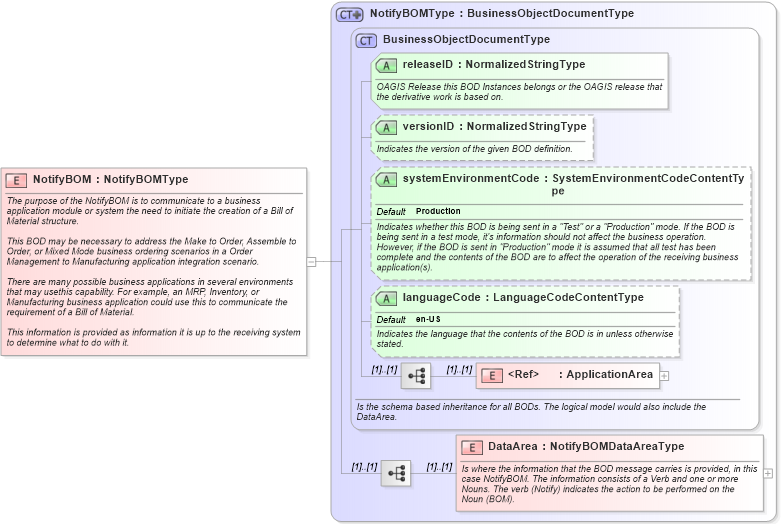

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema notifybom_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into NotifyBOMType in schema notifybom_xsdXSD Diagram of NotifyBOM in schema notifybom_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="NotifyBOM" type="NotifyBOMType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">The purpose of the NotifyBOM is to communicate to a business application module or system the need to initiate the creation of a Bill of Material structure.

This BOD may be necessary to address the Make to Order, Assemble to Order, or Mixed Mode business ordering scenarios in a Order Management to Manufacturing application integration scenario.

There are many possible business applications in several environments that may usethis capability. For example, an MRP, Inventory, or Manufacturing business application could use this to communicate the requirement of a Bill of Material.

This information is provided as information it is up to the receiving system to determine what to do with it.  </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
