Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: NotifyCarrierRoute
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:NotifyCarrierRouteType
Containing Schema: NotifyCarrierRoute.xsd
Abstract
Documentation:
The purpose of the NotifyCarrierRoute is to enable an application to provide Carrier Route information from another business application module. The NotifyCarrierRoute is typiically provided in a publish/subscribe or broadcast environment. Where the sending system is the master application of the information being provided, where the information is sent to other business applications that need to know the information. This information is provided as information it is up to the receiving system to determine what to do with it.

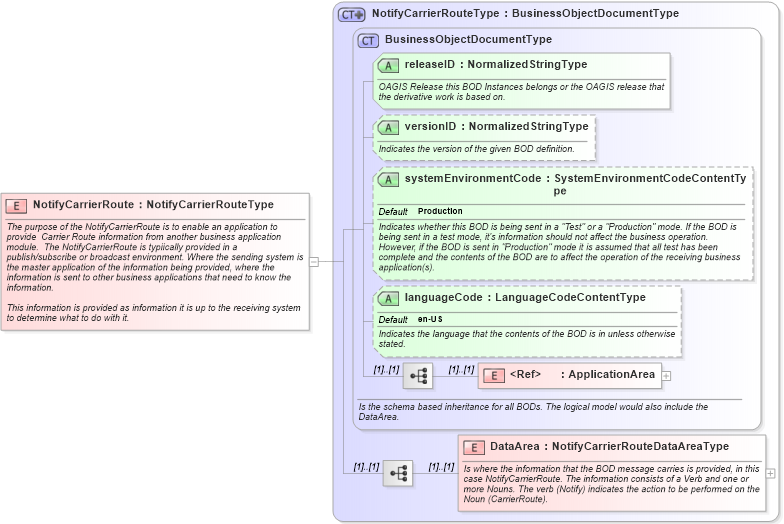

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema notifycarrierroute_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into NotifyCarrierRouteType in schema notifycarrierroute_xsdXSD Diagram of NotifyCarrierRoute in schema notifycarrierroute_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="NotifyCarrierRoute" type="NotifyCarrierRouteType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">The purpose of the NotifyCarrierRoute is to enable an application to provide  Carrier Route information from another business application module.  The NotifyCarrierRoute is typiically provided in a publish/subscribe or broadcast environment. Where the sending system is the master application of the information being provided, where the information is sent to other business applications that need to know the information.

This information is provided as information it is up to the receiving system to determine what to do with it.  </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
