Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: NotifyCreditStatus
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:NotifyCreditStatusType
Containing Schema: NotifyCreditStatus.xsd
Abstract
Documentation:
The purpose of the NotifyCreditStatus is to supply CreditStatus information to another business application module. This information is provided as information it is up to the receiving system to determine what to do with it.

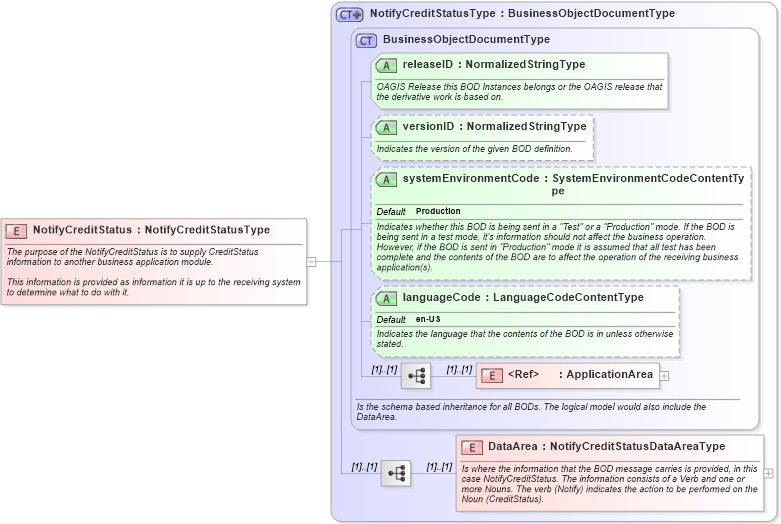

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema notifycreditstatus_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into NotifyCreditStatusType in schema notifycreditstatus_xsdXSD Diagram of NotifyCreditStatus in schema notifycreditstatus_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="NotifyCreditStatus" type="NotifyCreditStatusType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">The purpose of the NotifyCreditStatus is to supply CreditStatus information to another business application module.

This information is provided as information it is up to the receiving system to determine what to do with it.  </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
