Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: NotifyEmployeeWorkTime
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:NotifyEmployeeWorkTimeType
Containing Schema: NotifyEmployeeWorkTime.xsd
Abstract
Documentation:
The purpose of the NotifyEmployeeWorkTime is to Notify work time information for an employee from a data collection application to an ERP Human Resource application. This information is provided as information it is up to the receiving system to determine what to do with it.

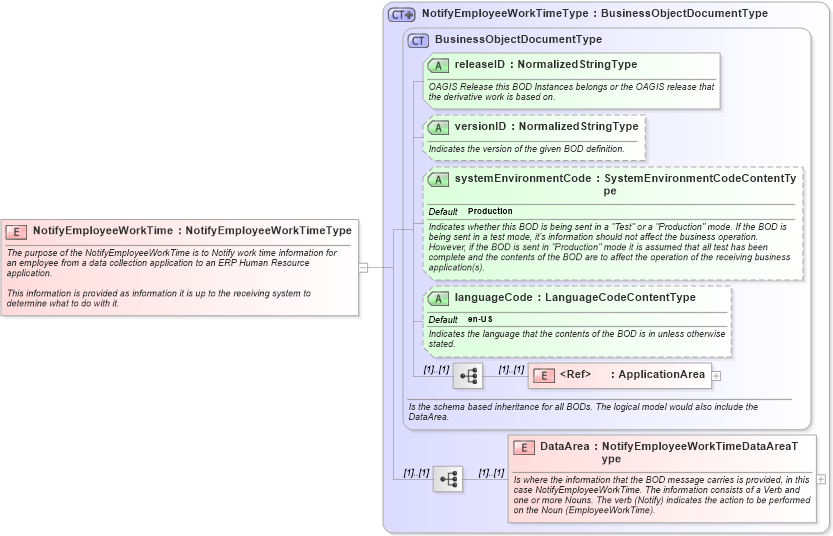

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema notifyemployeeworktime_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into NotifyEmployeeWorkTimeType in schema notifyemployeeworktime_xsdXSD Diagram of NotifyEmployeeWorkTime in schema notifyemployeeworktime_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="NotifyEmployeeWorkTime" type="NotifyEmployeeWorkTimeType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">The purpose of the NotifyEmployeeWorkTime is to Notify work time information for an employee from a data collection application to an ERP Human Resource application.

This information is provided as information it is up to the receiving system to determine what to do with it.  </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
