Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: NotifyField
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:NotifyFieldType
Containing Schema: NotifyField.xsd
Abstract
Documentation:
The purpose of the NotifyField is to enable the validation of data that exists on separate application's data bases. This BOD can cause on-line validation to occur or may be a single tool for synchronizing data. This information is provided as information it is up to the receiving system to determine what to do with it.
Collapse XSD Schema Diagram:

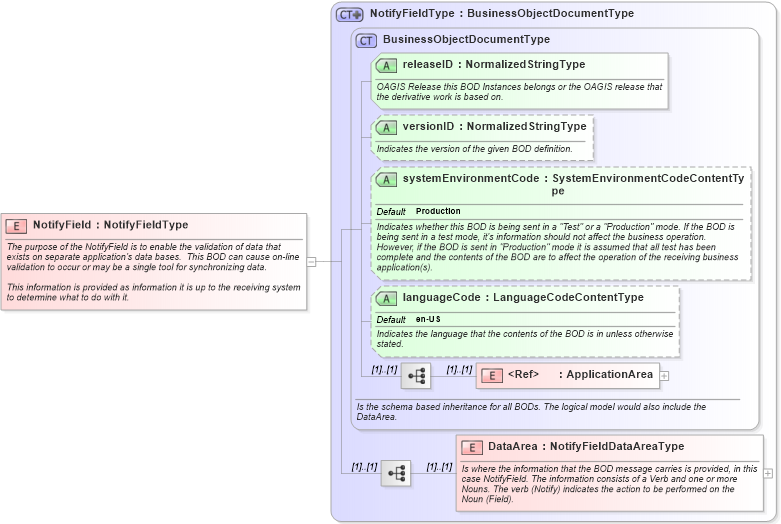

Drilldown into DataArea in schema notifyfield_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into NotifyFieldType in schema notifyfield_xsdXSD Diagram of NotifyField in schema notifyfield_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="NotifyField" type="NotifyFieldType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">The purpose of the NotifyField is to enable the validation of data that exists on separate application's data bases.  This BOD can cause on-line validation to occur or may be a single tool for synchronizing data.

This information is provided as information it is up to the receiving system to determine what to do with it.  </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
