Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: NotifyInventoryBalance
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:NotifyInventoryBalanceType
Containing Schema: NotifyInventoryBalance.xsd
Abstract
Documentation:
The purpose of the NotifyInventoryBalance is to enable the synchronization of InventoryBalance data that exists on separate Item Master databases. This data is not the master data that describes the attributes of the item such as dimensions, weight, or unit of measure. This is data that describes the ITEM as it exists at a specific location. The primary focus of this BOD is to synchronize the quantity of an item by stocking location. This information is provided as information it is up to the receiving system to determine what to do with it.

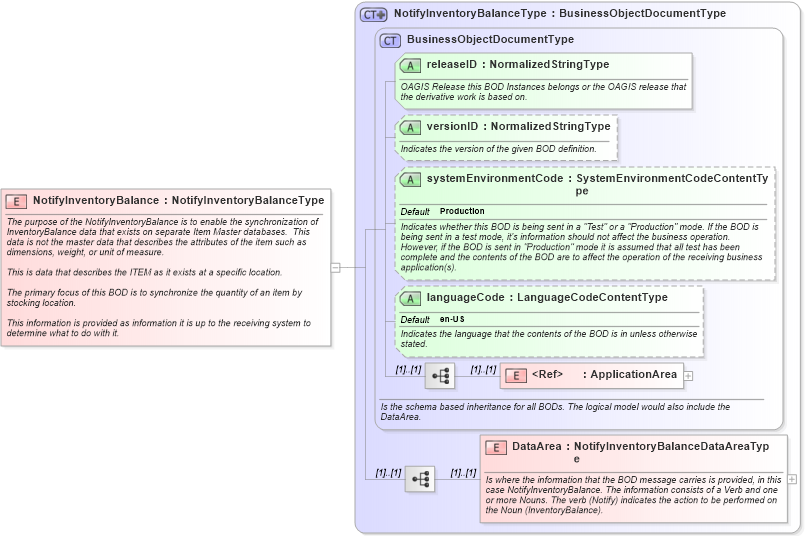

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema notifyinventorybalance_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into NotifyInventoryBalanceType in schema notifyinventorybalance_xsdXSD Diagram of NotifyInventoryBalance in schema notifyinventorybalance_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="NotifyInventoryBalance" type="NotifyInventoryBalanceType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">The purpose of the NotifyInventoryBalance is to enable the synchronization of InventoryBalance data that exists on separate Item Master databases.  This data is not the master data that describes the attributes of the item such as dimensions, weight, or unit of measure.

This is data that describes the ITEM as it exists at a specific location.

The primary focus of this BOD is to synchronize the quantity of an item by stocking location.

This information is provided as information it is up to the receiving system to determine what to do with it.
</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
