Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: NotifyInvoice
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:NotifyInvoiceType
Containing Schema: NotifyInvoice.xsd
Abstract
Documentation:
The purpose of the NotifyInvoice is to transmit an invoice from a supplier to a customer. This information is passed in order to keep the customer updated on the number of Invoices they have. This information is provided as information it is up to the receiving system to determine what to do with it.

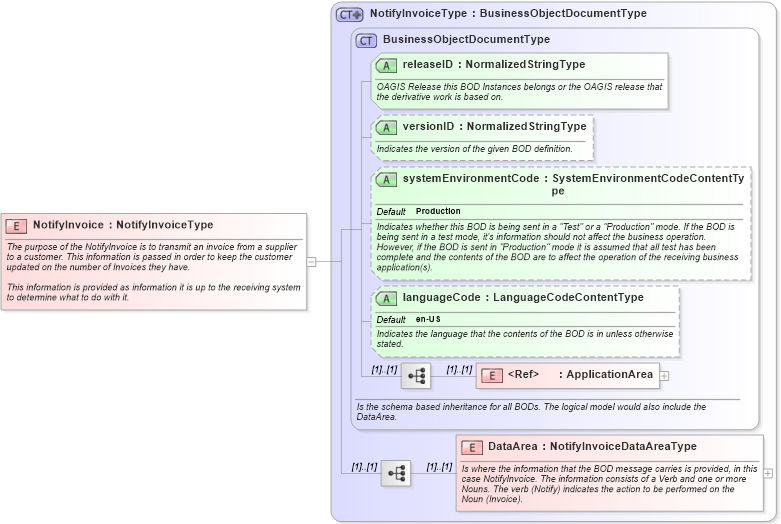

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema notifyinvoice_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into NotifyInvoiceType in schema notifyinvoice_xsdXSD Diagram of NotifyInvoice in schema notifyinvoice_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="NotifyInvoice" type="NotifyInvoiceType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">The purpose of the NotifyInvoice is to transmit an invoice from a supplier to a customer. This information is passed in order to keep the customer updated on the number of Invoices they have.

This information is provided as information it is up to the receiving system to determine what to do with it.  </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
