Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: NotifyPersonnel
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:NotifyPersonnelType
Containing Schema: NotifyPersonnel.xsd
Abstract
Documentation:
The purpose of the NotifyPersonnel is to communicate personnel data that exists on separate data bases between manufacturing and human resource applications. The NotifyPersonnel allows the adding of new employees and their relevant data as well as the modification of previously established employees. The NotifyPersonnel is used to facilitate the maintenance of human resource data in a manufacturing work force planning module. This enables the workforce planning module to use current personnel information when creating finite production schedules. The NotifyPersonnel can also be used by a project accounting application or a work order management application to assign qualified personnel or to perform resource planning. This information is provided as information it is up to the receiving system to determine what to do with it.

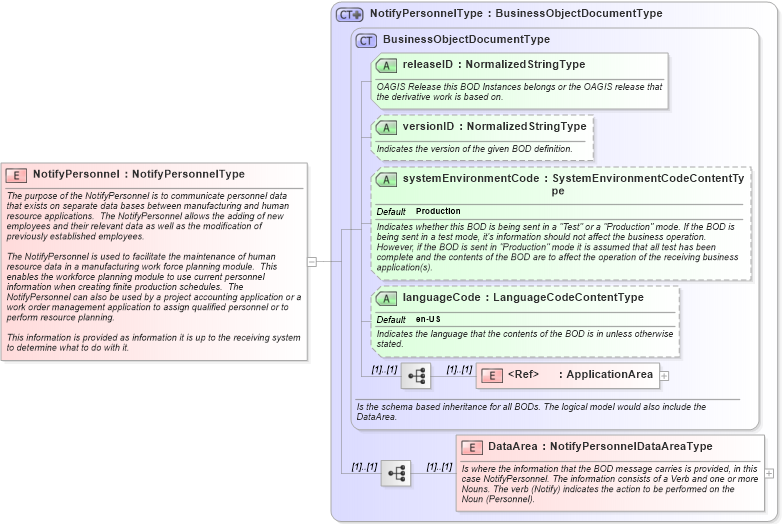

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema notifypersonnel_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into NotifyPersonnelType in schema notifypersonnel_xsdXSD Diagram of NotifyPersonnel in schema notifypersonnel_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="NotifyPersonnel" type="NotifyPersonnelType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">The purpose of the NotifyPersonnel is to communicate personnel data that exists on separate data bases between manufacturing and human resource applications.  The NotifyPersonnel allows the adding of new employees and their relevant data as well as the modification of previously established employees.

The NotifyPersonnel is used to facilitate the maintenance of human resource data in a manufacturing work force planning module.  This enables the workforce planning module to use current personnel information when creating finite production schedules.  The NotifyPersonnel can also be used by a project accounting application or a work order management application to assign qualified personnel or to perform resource planning.

This information is provided as information it is up to the receiving system to determine what to do with it.  </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
