Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: NotifyProductionSchedule
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:NotifyProductionScheduleType
Containing Schema: NotifyProductionSchedule.xsd
Abstract
Documentation:
The purpose of the NotifyProductionSchedule is to synchronize the information known about ProductionSchedules between systems. The NotifyProductionSchedule MUST be generated from the system that own the ProductionSchedule and sent to systems that count on the sending system to maintain the ProductionSchedule information. This information is provided as information it is up to the receiving system to determine what to do with it.

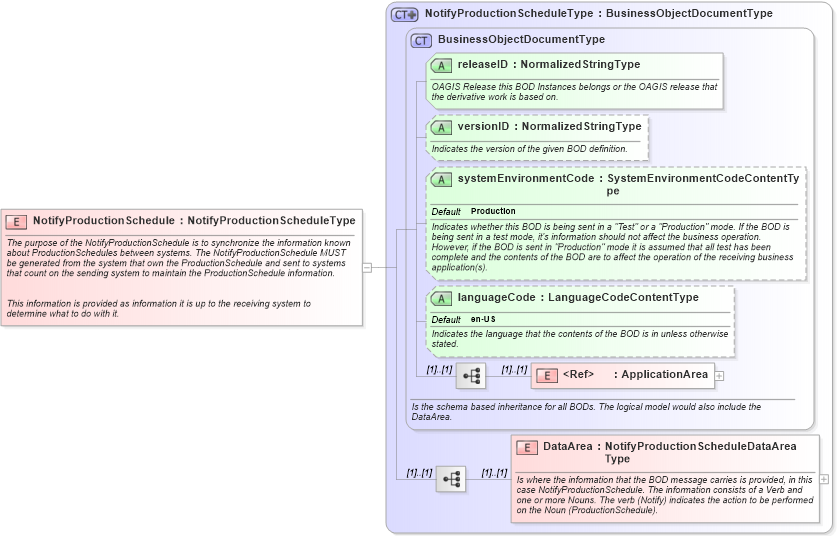

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema notifyproductionschedule_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into NotifyProductionScheduleType in schema notifyproductionschedule_xsdXSD Diagram of NotifyProductionSchedule in schema notifyproductionschedule_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="NotifyProductionSchedule" type="NotifyProductionScheduleType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">The purpose of the NotifyProductionSchedule is to synchronize the information known about ProductionSchedules between systems. The NotifyProductionSchedule MUST be generated from the system that own the ProductionSchedule and sent to systems that count on the sending system to maintain the ProductionSchedule information.


This information is provided as information it is up to the receiving system to determine what to do with it.  </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
