Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: NotifySequenceSchedule
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:NotifySequenceScheduleType
Containing Schema: NotifySequenceSchedule.xsd
Abstract
Documentation:
The purpose of the NotifySequenceSchedule is to enable the exchange of sequence schedule information authorizing a sequenced shipment of parts for specific trading partners and addresses. Commonly, the sequence schedule is generated by a work in process application and transmitted to an order or material planning application. This information is provided as information it is up to the receiving system to determine what to do with it.

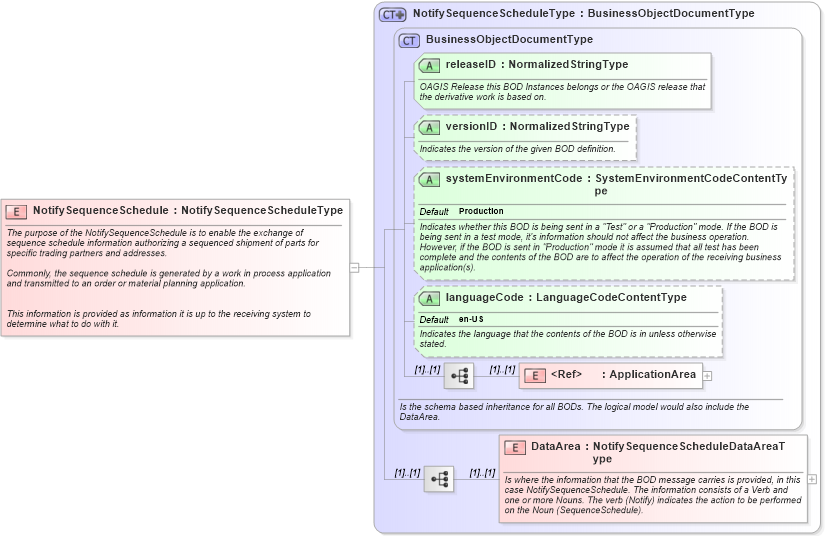

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema notifysequenceschedule_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into NotifySequenceScheduleType in schema notifysequenceschedule_xsdXSD Diagram of NotifySequenceSchedule in schema notifysequenceschedule_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="NotifySequenceSchedule" type="NotifySequenceScheduleType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">The purpose of the NotifySequenceSchedule is to enable the exchange of sequence schedule information authorizing a sequenced shipment of parts for specific trading partners and addresses.

Commonly, the sequence schedule is generated by a work in process application and transmitted to an order or material planning application.


This information is provided as information it is up to the receiving system to determine what to do with it.  </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
