Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: NotifyShipmentSchedule
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:NotifyShipmentScheduleType
Containing Schema: NotifyShipmentSchedule.xsd
Abstract
Documentation:
The purpose of the NotifyShipmentSchedule is to enable the exchange of shipment schedule information, authorizing a shipment quantity and date for specific trading partners and addresses. Commonly, the ship schedule is generated by a material planning application and transmitted to an order or material planning application. This information is provided as information it is up to the receiving system to determine what to do with it.

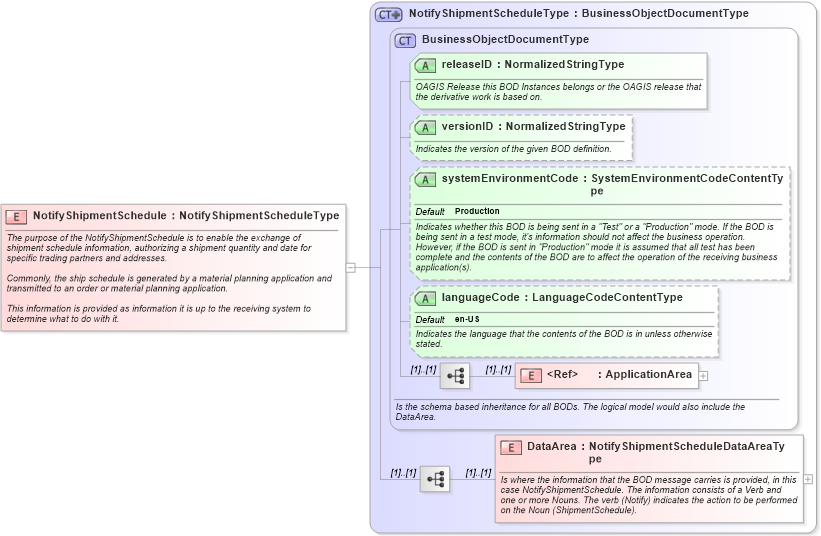

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema notifyshipmentschedule_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into NotifyShipmentScheduleType in schema notifyshipmentschedule_xsdXSD Diagram of NotifyShipmentSchedule in schema notifyshipmentschedule_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="NotifyShipmentSchedule" type="NotifyShipmentScheduleType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">The purpose of the NotifyShipmentSchedule is to enable the exchange of shipment schedule information, authorizing a shipment quantity and date for specific trading partners and addresses.

Commonly, the ship schedule is generated by a material planning application and transmitted to an order or material planning application.

This information is provided as information it is up to the receiving system to determine what to do with it.  </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
